Lightning protection and grounding
13 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.
LP quarter-wave lightning protectors (insertion loss under 0.1 dB, surge current over 20 kA, 8/20 μs), the SG closed spark gap ("can handle lightning discharge currents of 100 kA (8/20 µs)"), the LR lightning rod support, the GS grounding strip and the GC grounding cable (ComAnt catalog, pp. 70–78).
No listed part matches. Send us the frequency or the system and we will find it.
Request a quote70–90 MHz 1
-
LP80Quarter wave lightning protector- Frequency
- 70-90 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 690 mm
- Weight
- 250 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
126–154 MHz 1
-
LP140Quarter wave lightning protector- Frequency
- 126-154 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 430 mm
- Weight
- 195 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
144–176 MHz 1
-
LP150Quarter wave lightning protector- Frequency
- 144-176 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male/UHF-female – UHF-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 390 mm
- Weight
- 190 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
210–250 MHz 1
-
LP230Quarter wave lightning protector- Frequency
- 210-250 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 290 mm
- Weight
- 170 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
315–385 MHz 1
-
LP350Quarter wave lightning protector- Frequency
- 315-385 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 220 mm
- Weight
- 150 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
380–475 MHz 1
-
LP400Quarter wave lightning protector- Frequency
- 380-475 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 190 mm
- Weight
- 150 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
770–890 MHz 1
-
LP830Quarter wave lightning protector- Frequency
- 770-890 MHz
- Connector
- N-female – N-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 135 mm
- Weight
- 135 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
830–960 MHz 1
-
LP900Quarter wave lightning protector- Frequency
- 830-960 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 130 mm
- Weight
- 130 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
2300–2500 MHz 1
-
LP2400Quarter wave lightning protector- Frequency
- 2300-2500 MHz
- Connector
- N-female – N-male/TNC-female – TNC-male
- VSWR
- <1.2
More specifications
- Mounting
- M8
- Length
- 130 mm
- Weight
- 140 g
- Insertion loss
- < 0.1 dB*
- Surge current
- > 20kA (8/20 μs)*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the LP family, ComAnt catalog (March 2026), page 73.
Other parts 4
-
GC16Grounding cable 16 mm2- Connector
- M8 cable lug
More specifications
- Mounting
- M8
- Weight
- 180 g
-
GS48Grounding strip 48 mm- Connector
- 1*16mm2 – 2*25 mm2
More specifications
- Mounting
- Ø 17-48
- Length
- 70 mm
- Weight
- 60 g
-

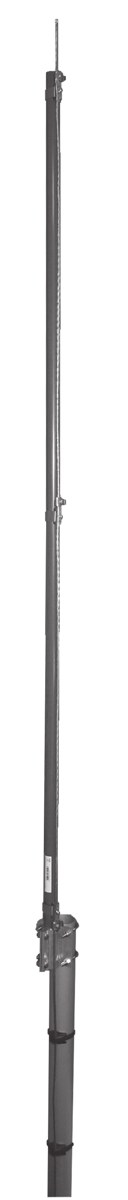

LR2000Lightning rod support- Connector
- 1*16mm2 – 2*25 mm2
More specifications
- Radome
- FG, PU foam
- Mounting
- Ø 35-60
- Length
- 2000 mm
- Weight
- 1400 g
- Temperature
- -40°C - +80°C*
* From CompleTech's datasheet for the LR family, ComAnt catalog (March 2026), page 74.
-
SGSpark gap 100 kA- Connector
- M10
More specifications
- Mounting
- M10
- Length
- 170 mm
- Weight
- 270 g
