Offset-pattern collinears and dipoles
65 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.
Offset-pattern antennas cover mostly all around the mast, with more signal on one side: the CAD dipole (5 dBi), the CAC2, CAC3 and CAC4 collinears (8 to 11 dBi, each step a narrower vertical beam), the CAN4 cardioid-pattern notch (8 dBi, front-to-back 30 dB) and the CAVHF/UHFD dual-band dipole. Values from the ComAnt catalog.
When you order, add the connector to the part number: -N, -TNC, -BNC, -SMA or -7/16 (CompleTech's product list). We confirm it on the quote.
No listed part matches. Send us the frequency or the system and we will find it.
Request a quote83–88 MHz 4
-
CA85C2Offset pattern collinear- Frequency
- 83-88 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 5220 mm
- Weight
- 2920 g
- Wind load
- 168 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-

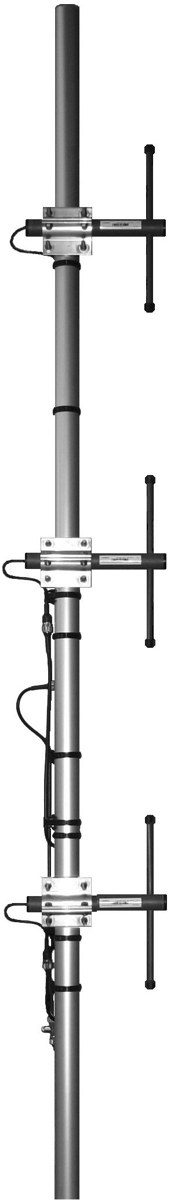

CA85C3Offset pattern collinear- Frequency
- 83-88 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 8750 mm
- Weight
- 4690 g
- Wind load
- 189 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-

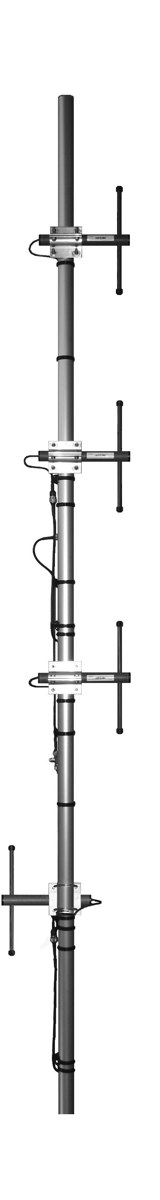

CA85C4Offset pattern collinear- Frequency
- 83-88 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 12280 mm
- Weight
- 6460 g
- Wind load
- 336 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-

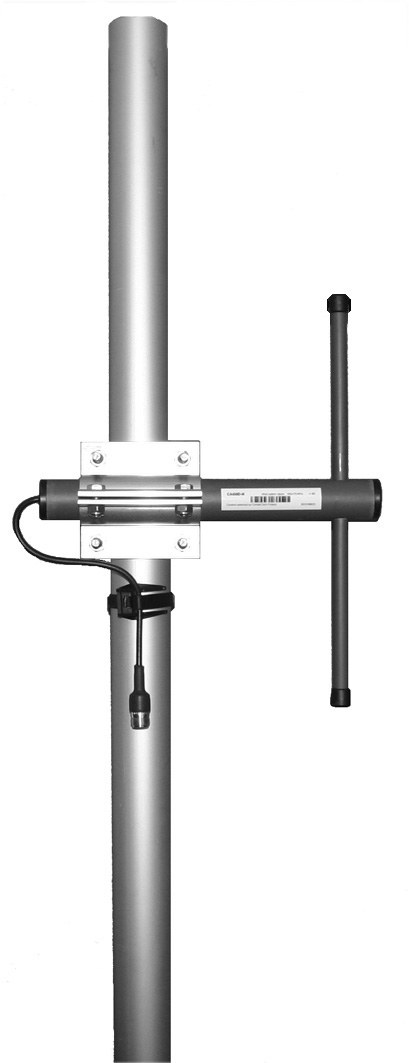

CA85DOffset pattern dipole- Frequency
- 83-88 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 695 mm
- Weight
- 1150 g
- Wind load
- 84 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
135–145 MHz 4
-
CA140C2Offset pattern collinear- Frequency
- 135-145 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3180 mm
- Weight
- 2260 g
- Wind load
- 126 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA140C3Offset pattern collinear- Frequency
- 135-145 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 5320 mm
- Weight
- 3615 g
- Wind load
- 189 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA140C4Offset pattern collinear- Frequency
- 135-145 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 7470 mm
- Weight
- 4970 g
- Wind load
- 252 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA140DOffset pattern dipole- Frequency
- 135-145 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 570 mm
- Weight
- 905 g
- Wind load
- 63 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
144–156 MHz 4
-
CA150C2Offset pattern collinear- Frequency
- 144-156 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2970 mm
- Weight
- 2200 g
- Wind load
- 120 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA150C3Offset pattern collinear- Frequency
- 144-156 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4970 mm
- Weight
- 3500 g
- Wind load
- 180 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA150C4Offset pattern collinear- Frequency
- 144-156 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 6970 mm
- Weight
- 4800 g
- Wind load
- 240 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA150DOffset pattern dipole- Frequency
- 144-156 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 540 mm
- Weight
- 900 g
- Wind load
- 60 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
154–166 MHz 4
-
CA160C2Offset pattern collinear- Frequency
- 154-166 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2780 mm
- Weight
- 2110 g
- Wind load
- 114 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA160C3Offset pattern collinear- Frequency
- 154-166 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4655 mm
- Weight
- 3435 g
- Wind load
- 171 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA160C4Offset pattern collinear- Frequency
- 154-166 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 6530 mm
- Weight
- 4610 g
- Wind load
- 228 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA160DOffset pattern dipole- Frequency
- 154-166 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 520 mm
- Weight
- 885 g
- Wind load
- 57 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
163–177 MHz 4
-
CA170C2Offset pattern collinear- Frequency
- 163-177 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2625 mm
- Weight
- 2095 g
- Wind load
- 110 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA170C3Offset pattern collinear- Frequency
- 163-177 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4390 mm
- Weight
- 3330 g
- Wind load
- 165 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA170C4Offset pattern collinear- Frequency
- 163-177 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 6150 mm
- Weight
- 4565 g
- Wind load
- 220 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-

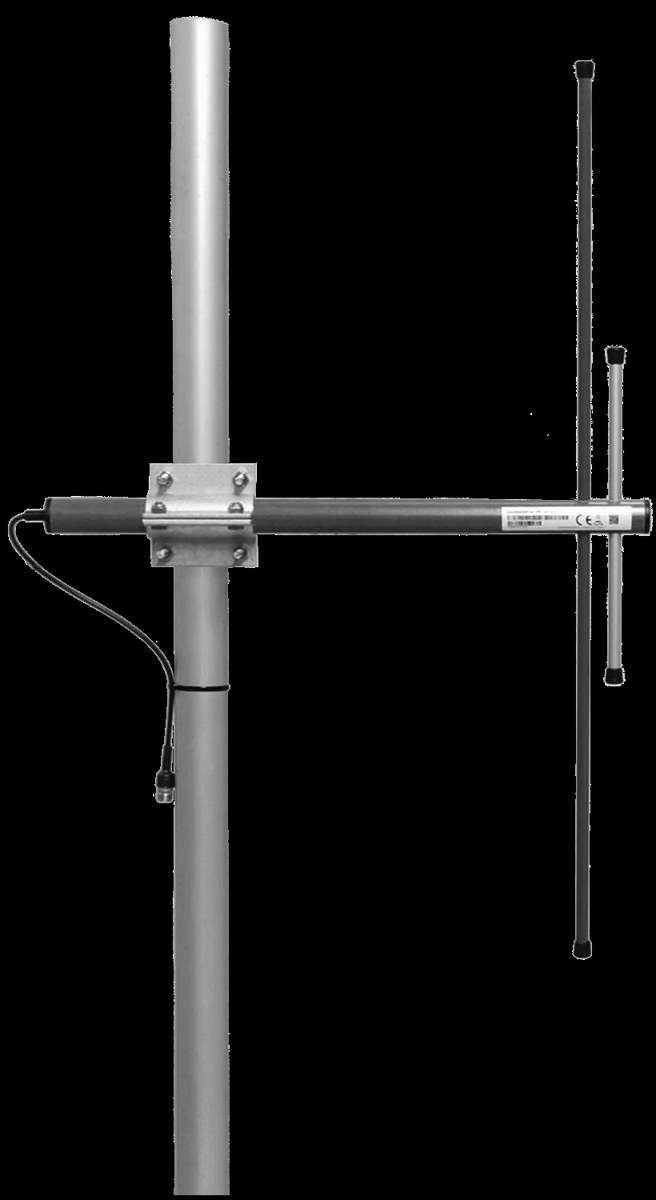

CA170DOffset pattern dipole- Frequency
- 163-177 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 495 mm
- Weight
- 860 g
- Wind load
- 55 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
221–239 MHz 4
-
CA230C2Offset pattern collinear- Frequency
- 221-239 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1955 mm
- Weight
- 1890 g
- Wind load
- 90 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA230C3Offset pattern collinear- Frequency
- 221-239 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3260 mm
- Weight
- 3005 g
- Wind load
- 135 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA230C4Offset pattern collinear- Frequency
- 221-239 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4560 mm
- Weight
- 4120 g
- Wind load
- 180 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA230DOffset pattern dipole- Frequency
- 221-239 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 405 mm
- Weight
- 775 g
- Wind load
- 45 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
326–353 MHz 5
-
CA340C2Offset pattern collinear- Frequency
- 326-353 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1320 mm
- Weight
- 1690 g
- Wind load
- 72 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA340C3Offset pattern collinear- Frequency
- 326-353 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2205 mm
- Weight
- 2680 g
- Wind load
- 108 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA340C4Offset pattern collinear- Frequency
- 326-353 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3085 mm
- Weight
- 3670 g
- Wind load
- 144 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA340DOffset pattern dipole- Frequency
- 326-353 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 320 mm
- Weight
- 700 g
- Wind load
- 36 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA340N4Cardioid pattern notch- Frequency
- 326-353 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3085 mm
- Weight
- 3670 g
- Wind load
- 144 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 229º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAN4 family, ComAnt catalog (March 2026), page 41.
336–364 MHz 5
-
CA350C2Offset pattern collinear- Frequency
- 336-364 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1280 mm
- Weight
- 1690 g
- Wind load
- 72 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA350C3Offset pattern collinear- Frequency
- 336-364 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2130 mm
- Weight
- 2680 g
- Wind load
- 108 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA350C4Offset pattern collinear- Frequency
- 336-364 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2990 mm
- Weight
- 3670 g
- Wind load
- 144 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA350DOffset pattern dipole- Frequency
- 336-364 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 310 mm
- Weight
- 700 g
- Wind load
- 36 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA350N4Cardioid pattern notch- Frequency
- 336-364 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2990 mm
- Weight
- 3670 g
- Wind load
- 144 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 229º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAN4 family, ComAnt catalog (March 2026), page 41.
365–395 MHz 5
-
CA380C2Offset pattern collinear- Frequency
- 365-395 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1190 mm
- Weight
- 1660 g
- Wind load
- 70 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA380C3Offset pattern collinear- Frequency
- 365-395 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1980 mm
- Weight
- 2630 g
- Wind load
- 105 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA380C4Offset pattern collinear- Frequency
- 365-395 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2765 mm
- Weight
- 3600 g
- Wind load
- 140 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA380DOffset pattern dipole- Frequency
- 365-395 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 300 mm
- Weight
- 690 g
- Wind load
- 35 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA380N4Cardioid pattern notch- Frequency
- 365-395 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2765 mm
- Weight
- 3600 g
- Wind load
- 140 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 229º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAN4 family, ComAnt catalog (March 2026), page 41.
380–410 MHz 5
-
CA400C2Offset pattern collinear- Frequency
- 380-410 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1140 mm
- Weight
- 1630 g
- Wind load
- 68 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA400C3Offset pattern collinear- Frequency
- 380-410 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1900 mm
- Weight
- 2580 g
- Wind load
- 102 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA400C4Offset pattern collinear- Frequency
- 380-410 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2660 mm
- Weight
- 3530 g
- Wind load
- 136 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA400DOffset pattern dipole- Frequency
- 380-410 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 290 mm
- Weight
- 680 g
- Wind load
- 34 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA400N4Cardioid pattern notch- Frequency
- 380-410 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2660 mm
- Weight
- 3530 g
- Wind load
- 136 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 229º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAN4 family, ComAnt catalog (March 2026), page 41.
405–440 MHz 6
-
CA420C2Offset pattern collinear- Frequency
- 405-440 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1070 mm
- Weight
- 1605 g
- Wind load
- 66 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA420C3Offset pattern collinear- Frequency
- 405-440 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1780 mm
- Weight
- 2535 g
- Wind load
- 99 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA420C4Offset pattern collinear- Frequency
- 405-440 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2490 mm
- Weight
- 3465 g
- Wind load
- 132 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA420DOffset pattern dipole- Frequency
- 405-440 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 285 mm
- Weight
- 675 g
- Wind load
- 33 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA420D-NOffset pattern dipole- Frequency
- 405-440 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 285 mm
- Weight
- 675 g
- Wind load
- 33 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA420N4Cardioid pattern notch- Frequency
- 405-440 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2490 mm
- Weight
- 3465 g
- Wind load
- 132 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 229º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAN4 family, ComAnt catalog (March 2026), page 41.
440–475 MHz 6
-
CA450C2Offset pattern collinear- Frequency
- 440-475 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 985 mm
- Weight
- 1590 g
- Wind load
- 64 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA450C3Offset pattern collinear- Frequency
- 440-475 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1640 mm
- Weight
- 2510 g
- Wind load
- 96 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA450C4Offset pattern collinear- Frequency
- 440-475 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2295 mm
- Weight
- 3430 g
- Wind load
- 128 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA450DOffset pattern dipole- Frequency
- 440-475 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 275 mm
- Weight
- 670 g
- Wind load
- 32 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA450D-NOffset pattern dipole- Frequency
- 440-475 MHz
More specifications
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
-
CA450N4Cardioid pattern notch- Frequency
- 440-475 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2295 mm
- Weight
- 3430 g
- Wind load
- 128 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 229º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAN4 family, ComAnt catalog (March 2026), page 41.
830–890 MHz 4
-
CA860C2Offset pattern collinear- Frequency
- 830-890 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 530 mm
- Weight
- 1480 g
- Wind load
- 50 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA860C3Offset pattern collinear- Frequency
- 830-890 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 880 mm
- Weight
- 2330 g
- Wind load
- 75 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA860C4Offset pattern collinear- Frequency
- 830-890 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1225 mm
- Weight
- 3180 g
- Wind load
- 100 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA860DOffset pattern dipole- Frequency
- 830-890 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 210 mm
- Weight
- 630 g
- Wind load
- 25 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
880–960 MHz 4
-
CA930C2Offset pattern collinear- Frequency
- 880-960 MHz
- Gain
- 8 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 492 mm
- Weight
- 1455 g
- Wind load
- 50 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 181º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 5-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC2 family, ComAnt catalog (March 2026), page 22.
-
CA930C3Offset pattern collinear- Frequency
- 880-960 MHz
- Gain
- 10 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 820 mm
- Weight
- 2290 g
- Wind load
- 75 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC3 family, ComAnt catalog (March 2026), page 23.
-
CA930C4Offset pattern collinear- Frequency
- 880-960 MHz
- Gain
- 11 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1136 mm
- Weight
- 3125 g
- Wind load
- 100 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 182º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 4-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAC4 family, ComAnt catalog (March 2026), page 24.
-
CA930DOffset pattern dipole- Frequency
- 880-960 MHz
- Gain
- 5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 205 mm
- Weight
- 620 g
- Wind load
- 25 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 179º*
- Vertical beamwidth (−3 dB)
- 74º*
- Front-to-back
- 6-10 dB, depending on mounting*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAD family, ComAnt catalog (March 2026), page 26.
Other parts 1
-
CAVHF/UHFDOffset pattern dual band dipole- Frequency
- 50-300/300-3000 f₀ ±2-4% MHz
- Gain
- 5/5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Horizontal beamwidth (−3 dB)
- 182/244º, typical*
- Vertical beamwidth (−3 dB)
- 72/50º, typical*
- Front-to-back
- 7/5 dB, typical*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAVHF/UHFD family, ComAnt catalog (March 2026), page 54.
Need it built, not just bought?
Our UL 508A panel shop in Brookfield, Wisconsin builds radio and telemetry enclosures: the radio, the lightning protection and the cabling, wired and tested. Build to print or PLC and control panels.
