Yagis, yagi arrays and other directional antennas
165 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.
Directional antennas: CompleTech's yagis (CAY), end-fire yagi arrays (CAF2), stacked yagi arrays (CAS2, CAS3, CAS4), the broadband LTE yagis (CALTEY, CACELY) and the CAR reflector monopole. Each + in a ComAnt part number marks a higher-gain version of the same family: compare the gain of a CAY and a CAY+++ in the same band. Higher gain means a narrower beam to aim. Pattern and gain explained.
When you order, add the connector to the part number: -N, -TNC, -BNC, -SMA or -7/16 (CompleTech's product list). We confirm it on the quote.
No listed part matches. Send us the frequency or the system and we will find it.
Request a quote135–145 MHz 7
-

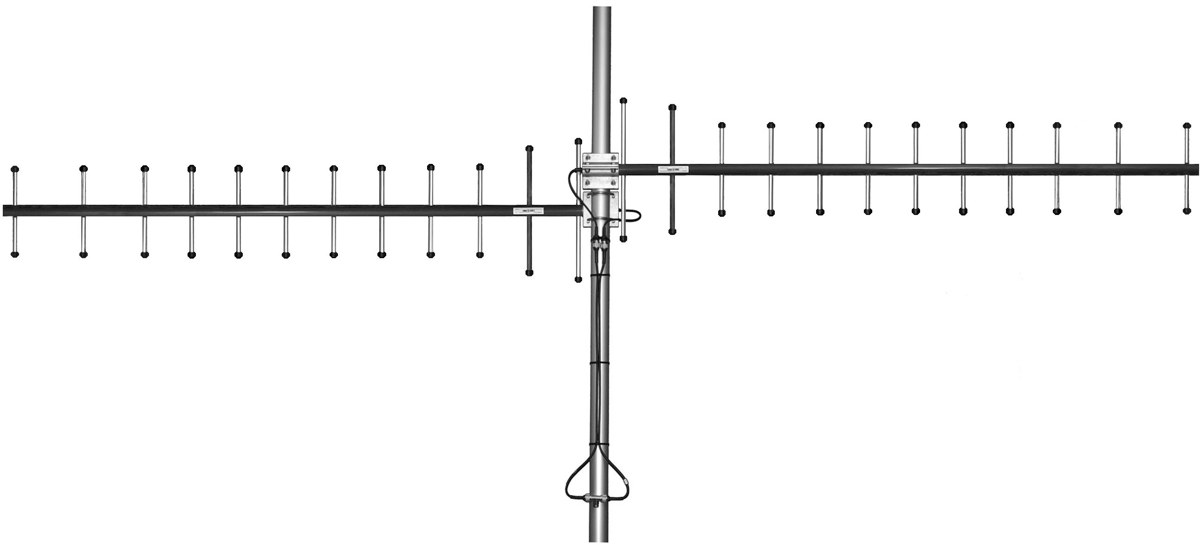

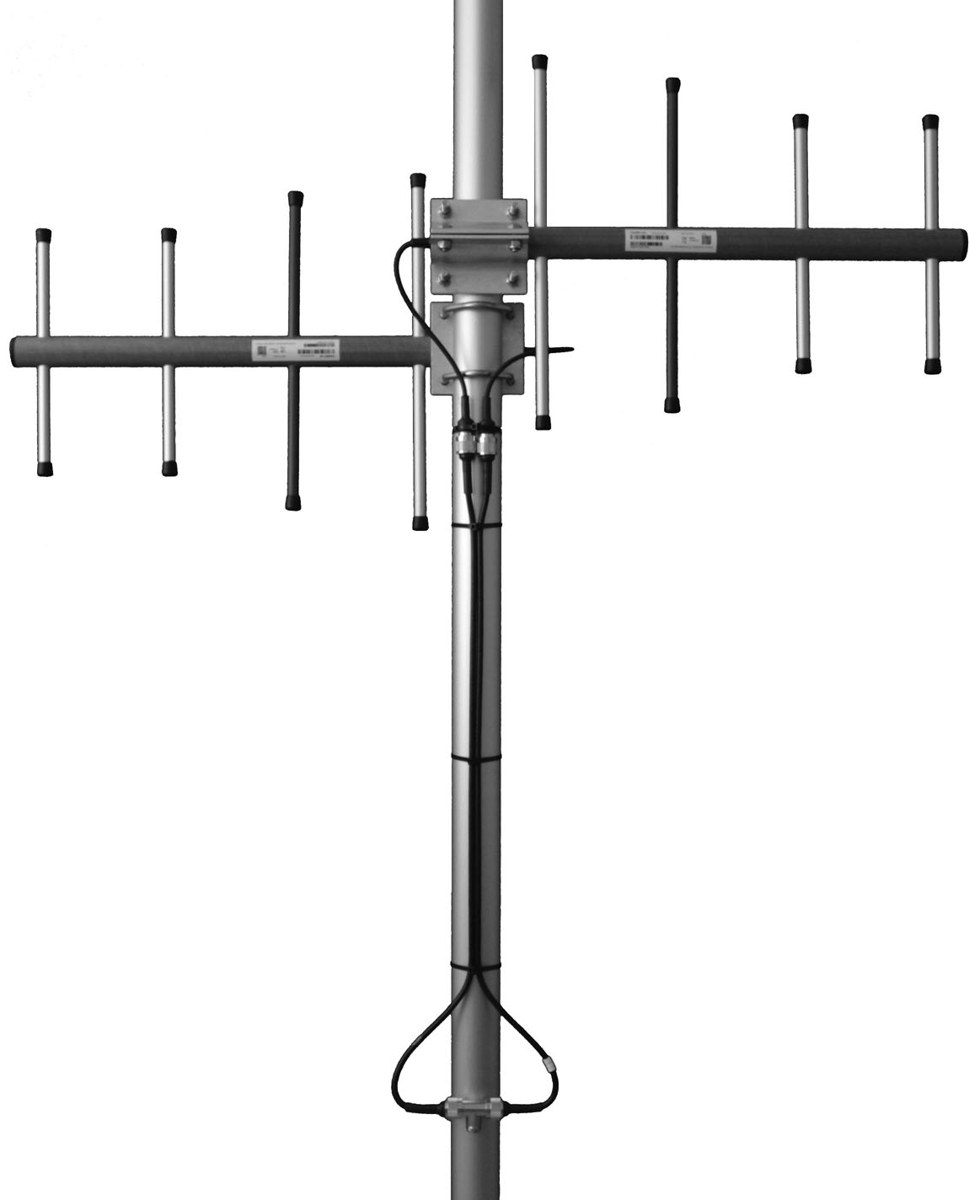

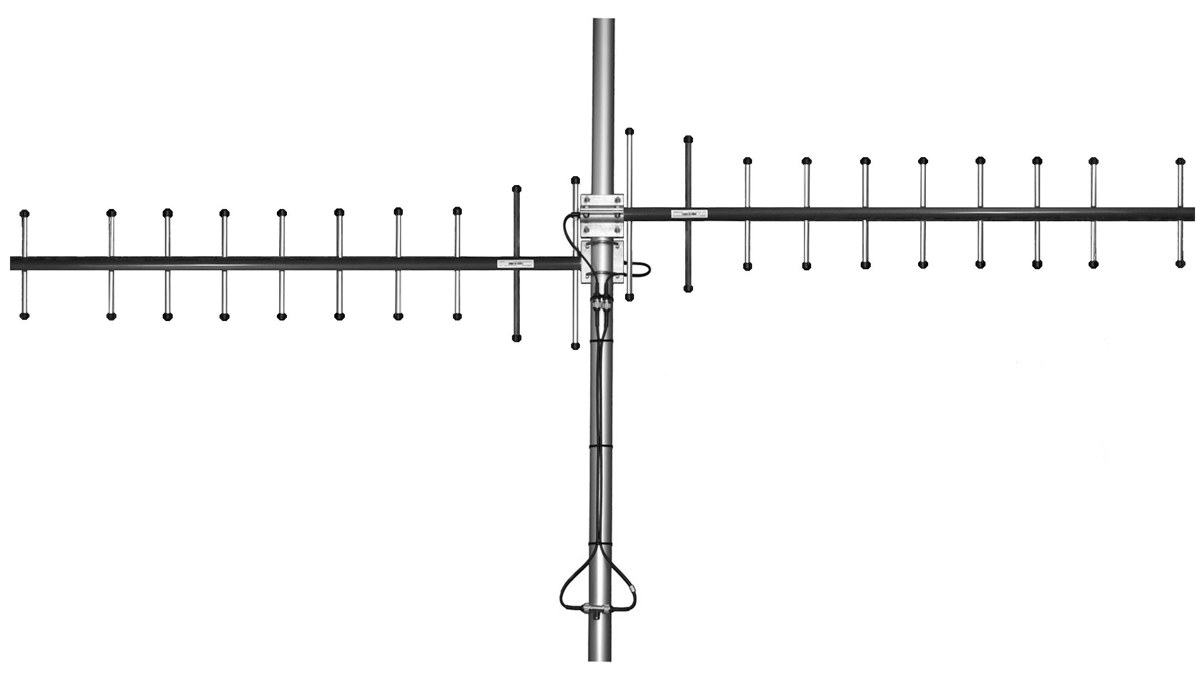

CA140F2+Directional end fire yagi array- Frequency
- 135-145 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2765 mm
- Weight
- 3430 g
- Wind load
- 342 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-

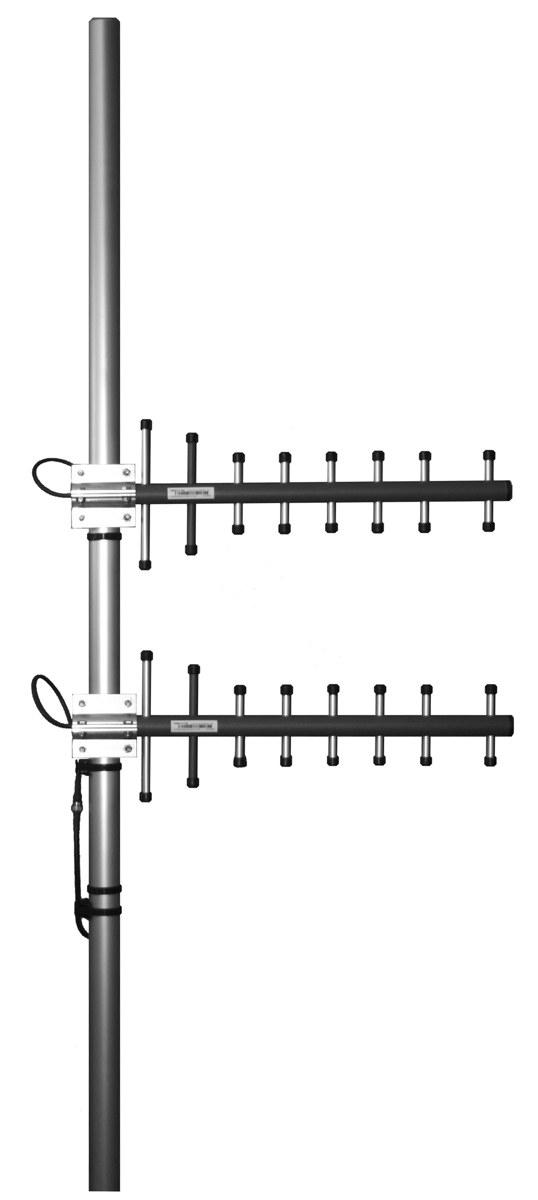

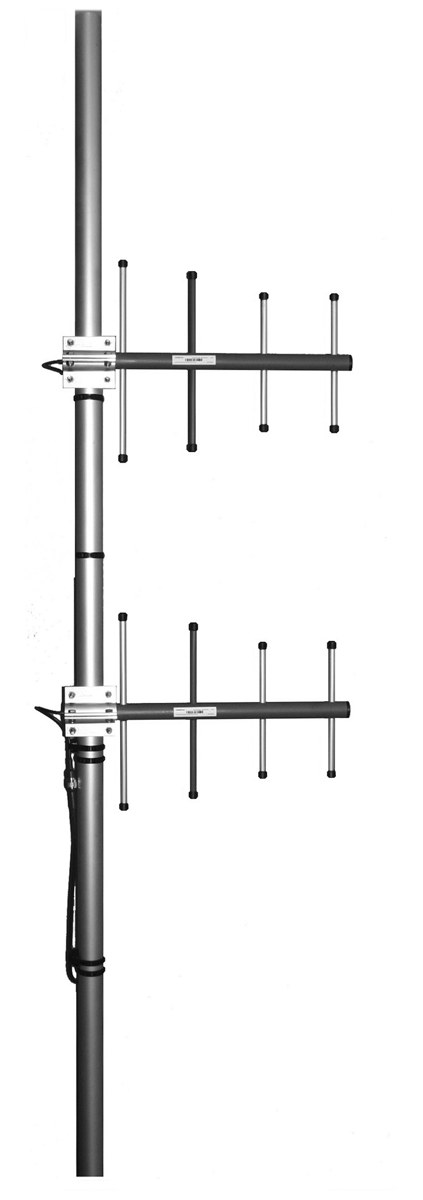

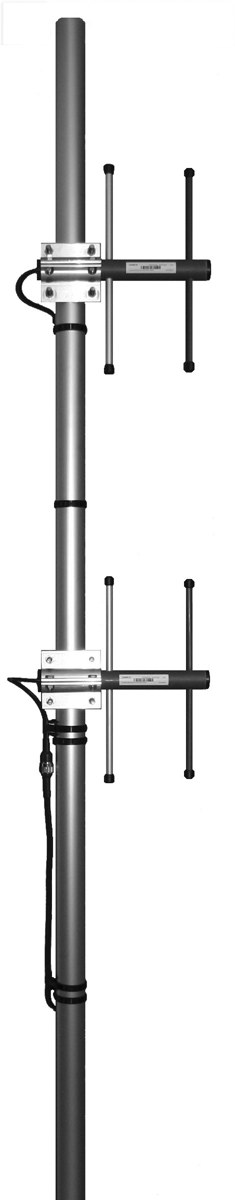

CA140S2Directional stacked yagi array- Frequency
- 135-145 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3220 mm
- Weight
- 2500 g
- Wind load
- 168 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-

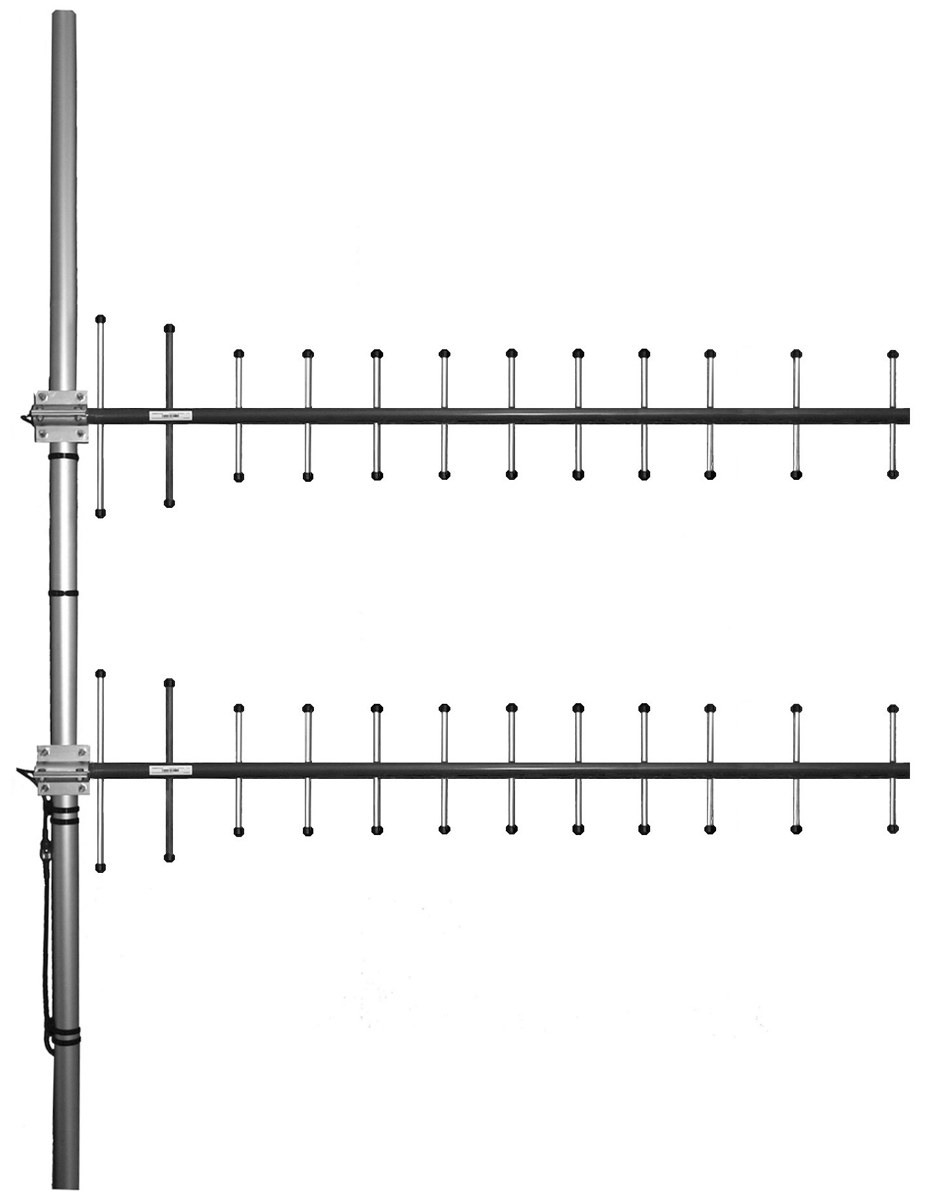

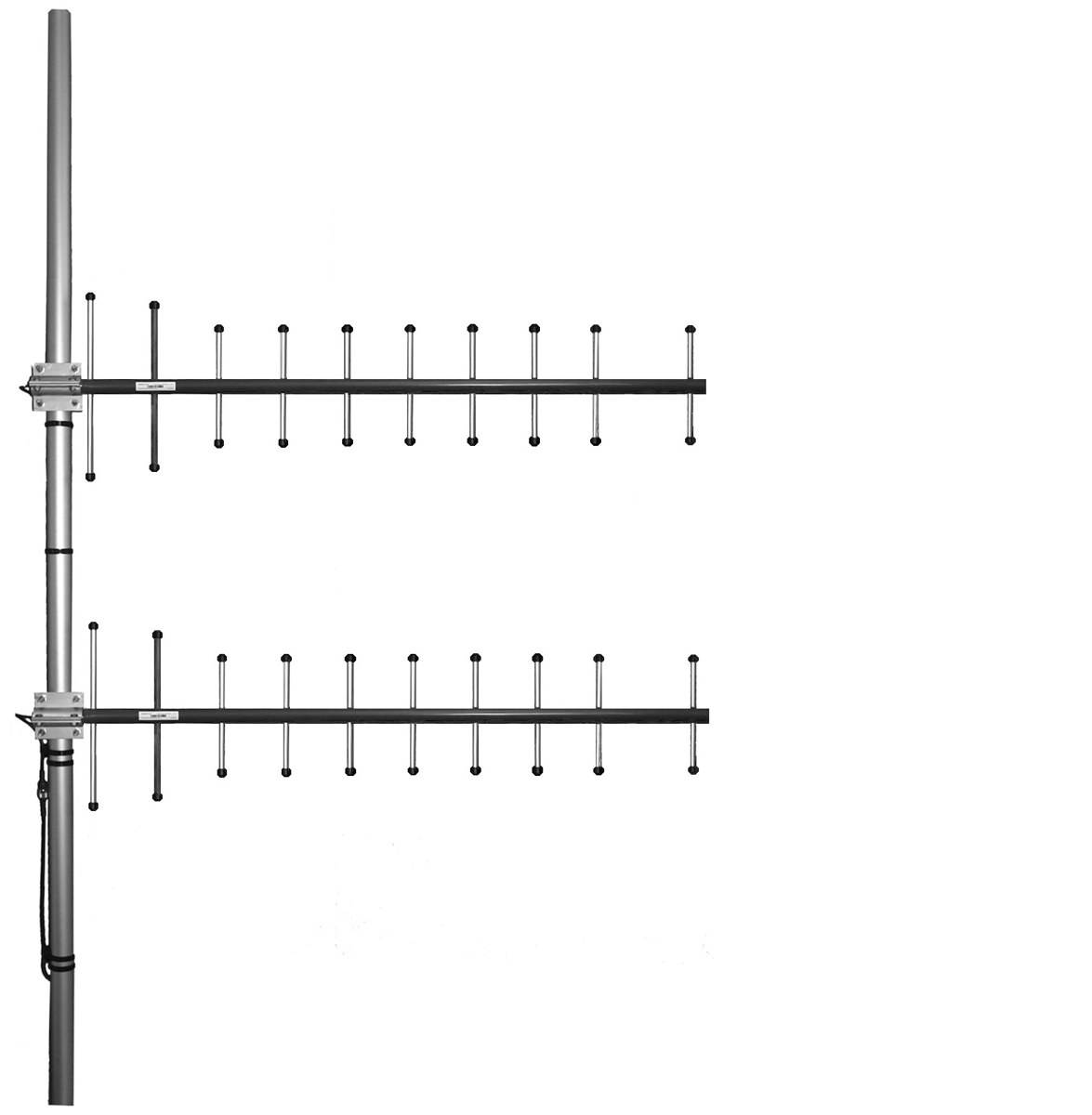

CA140S2+Directional stacked yagi array- Frequency
- 135-145 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3300 mm
- Weight
- 3430 g
- Wind load
- 342 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA140S3Directional stacked yagi array- Frequency
- 135-145 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 5360 mm
- Weight
- 3975 g
- Wind load
- 252 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA140S4Directional stacked yagi array- Frequency
- 135-145 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 7500 mm
- Weight
- 5450 g
- Wind load
- 336 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-

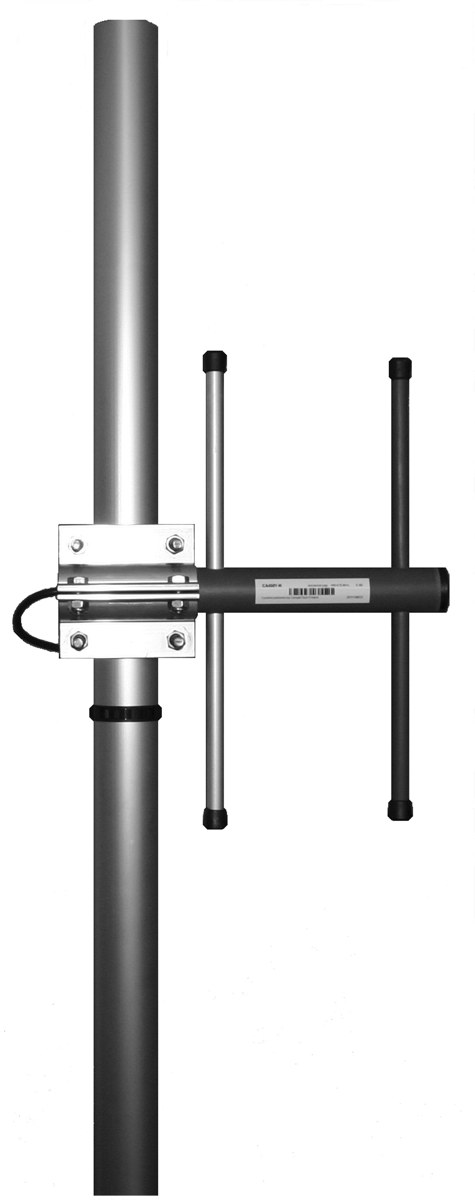

CA140YDirectional yagi- Frequency
- 135-145 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 570 mm
- Weight
- 1025 g
- Wind load
- 84 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-

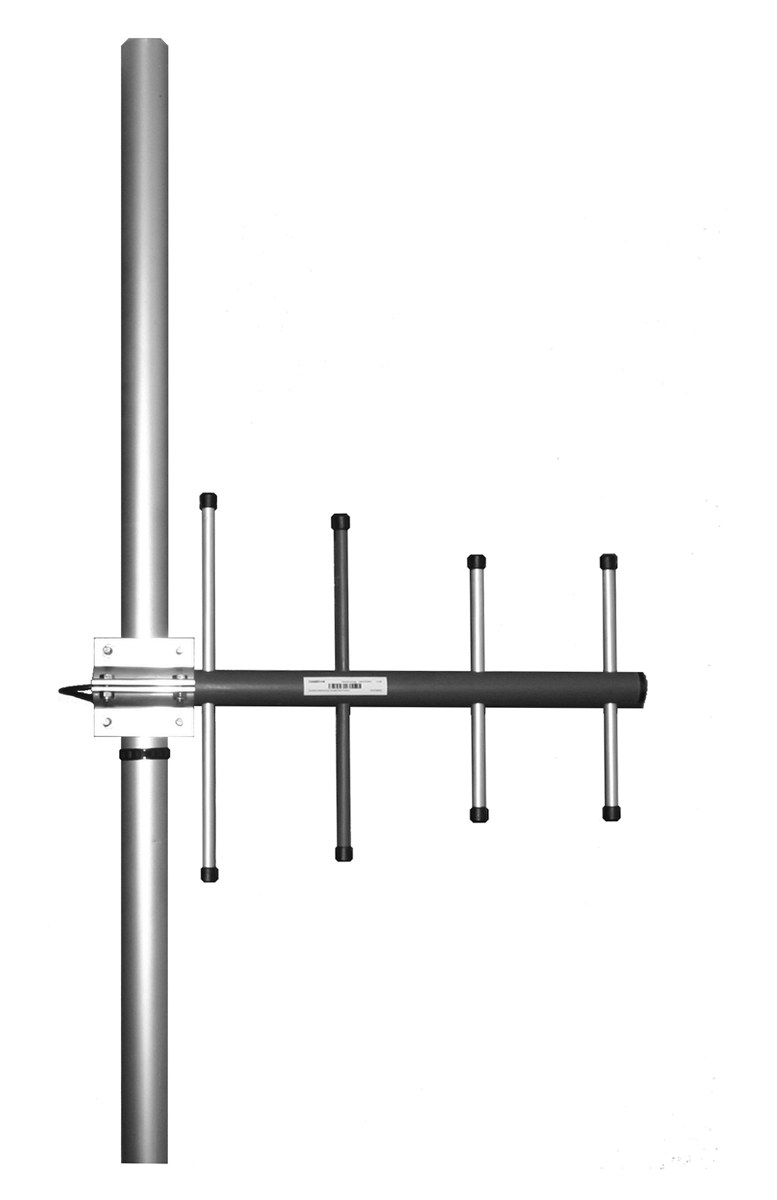

CA140Y+Directional yagi- Frequency
- 135-145 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1430 mm
- Weight
- 1490 g
- Wind load
- 171 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
144–156 MHz 7
-
CA150F2+Directional end fire yagi array- Frequency
- 144-156 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2585 mm
- Weight
- 3240 g
- Wind load
- 320 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA150S2Directional stacked yagi array- Frequency
- 144-156 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3005 mm
- Weight
- 2380 g
- Wind load
- 160 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA150S2+Directional stacked yagi array- Frequency
- 144-156 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3010 mm
- Weight
- 3240 g
- Wind load
- 320 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA150S3Directional stacked yagi array- Frequency
- 144-156 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 5005 mm
- Weight
- 3770 g
- Wind load
- 240 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA150S4Directional stacked yagi array- Frequency
- 144-156 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 7005 mm
- Weight
- 5160 g
- Wind load
- 320 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA150YDirectional yagi- Frequency
- 144-156 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 540 mm
- Weight
- 990 g
- Wind load
- 80 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA150Y+Directional yagi- Frequency
- 144-156 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1340 mm
- Weight
- 1420 g
- Wind load
- 160 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
154–166 MHz 7
-
CA160F2+Directional end fire yagi array- Frequency
- 154-166 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2435 mm
- Weight
- 3130 g
- Wind load
- 302 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA160S2Directional stacked yagi array- Frequency
- 154-166 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2820 mm
- Weight
- 2310 g
- Wind load
- 152 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA160S2+Directional stacked yagi array- Frequency
- 154-166 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2885 mm
- Weight
- 3130 g
- Wind load
- 302 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA160S3Directional stacked yagi array- Frequency
- 154-166 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4695 mm
- Weight
- 3660 g
- Wind load
- 228 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA160S4Directional stacked yagi array- Frequency
- 154-166 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 6570 mm
- Weight
- 5010 g
- Wind load
- 304 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA160YDirectional yagi- Frequency
- 154-166 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 515 mm
- Weight
- 960 g
- Wind load
- 76 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA160Y+Directional yagi- Frequency
- 154-166 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1265 mm
- Weight
- 1370 g
- Wind load
- 151 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
163–177 MHz 7
-

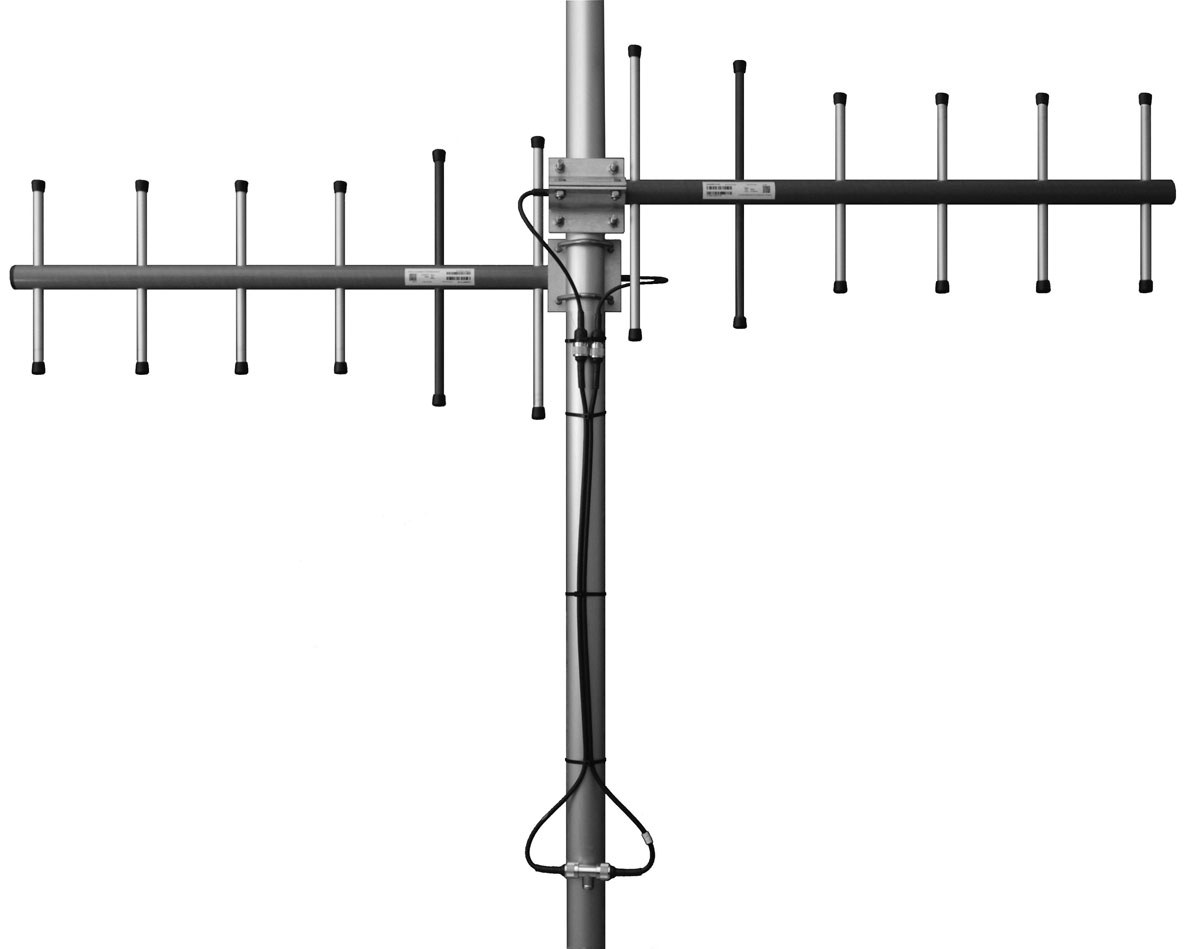

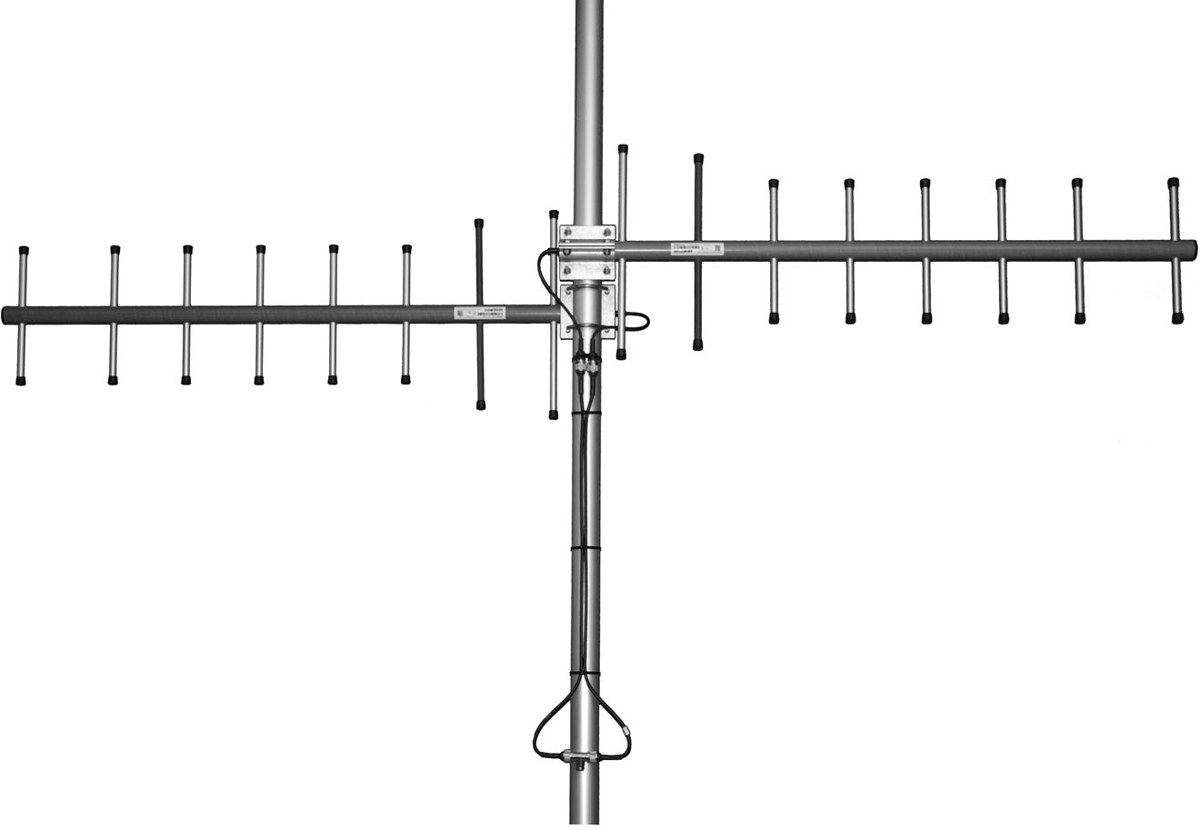

CA170F2+Directional end fire yagi array- Frequency
- 163-177 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2310 mm
- Weight
- 3015 g
- Wind load
- 286 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA170S2Directional stacked yagi array- Frequency
- 163-177 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2650 mm
- Weight
- 2135 g
- Wind load
- 146 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-

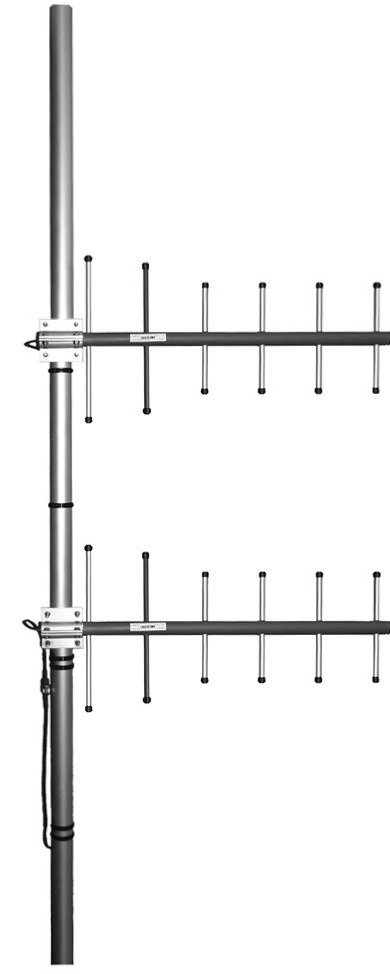

CA170S2+Directional stacked yagi array- Frequency
- 163-177 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2715 mm
- Weight
- 3015 g
- Wind load
- 286 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA170S3Directional stacked yagi array- Frequency
- 163-177 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4415 mm
- Weight
- 3390 g
- Wind load
- 219 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA170S4Directional stacked yagi array- Frequency
- 163-177 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 6180 mm
- Weight
- 4645 g
- Wind load
- 292 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA170YDirectional yagi- Frequency
- 163-177 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 495 mm
- Weight
- 880 g
- Wind load
- 73 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA170Y+Directional yagi- Frequency
- 163-177 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1200 mm
- Weight
- 1320 g
- Wind load
- 143 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
174–240 MHz 1
-
CADABYDAB-Y Special Configuration Antenna- Frequency
- 174-240 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/7/16-female
- VSWR
- <1.75
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 600 mm
- Weight
- 1080 g
- Wind load
- 100 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 150º*
- Vertical beamwidth (−3 dB)
- 70º*
- Front-to-back
- 15 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CADABY family, ComAnt catalog (March 2026), page 27.
221–239 MHz 7
-
CA230F2+Directional end fire yagi array- Frequency
- 221-239 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1755 mm
- Weight
- 2580 g
- Wind load
- 220 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA230S2Directional stacked yagi array- Frequency
- 221-239 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1965 mm
- Weight
- 1960 g
- Wind load
- 116 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA230S2+Directional stacked yagi array- Frequency
- 221-239 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2010 mm
- Weight
- 2580 g
- Wind load
- 220 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA230S3Directional stacked yagi array- Frequency
- 221-239 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3270 mm
- Weight
- 3110 g
- Wind load
- 174 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA230S4Directional stacked yagi array- Frequency
- 221-239 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 4570 mm
- Weight
- 4260 g
- Wind load
- 232 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA230YDirectional yagi- Frequency
- 221-239 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 405 mm
- Weight
- 810 g
- Wind load
- 58 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA230Y+Directional yagi- Frequency
- 221-239 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 925 mm
- Weight
- 1120 g
- Wind load
- 110 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
326–353 MHz 16
-
CA340F2+Directional end fire yagi array- Frequency
- 326-353 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1255 mm
- Weight
- 2190 g
- Wind load
- 158 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA340F2++Directional end fire yagi array- Frequency
- 326-353 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1985 mm
- Weight
- 2570 g
- Wind load
- 222 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 52º*
- Vertical beamwidth (−3 dB)
- 46º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++ family, ComAnt catalog (March 2026), page 30.
-
CA340F2+++Directional end fire yagi array- Frequency
- 326-353 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2745 mm
- Weight
- 2990 g
- Wind load
- 290 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 42º*
- Vertical beamwidth (−3 dB)
- 38º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++ family, ComAnt catalog (March 2026), page 31.
-
CA340F2++++Directional end fire yagi array- Frequency
- 326-353 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3565 mm
- Weight
- 3390 g
- Wind load
- 358 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 38º*
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++++ family, ComAnt catalog (March 2026), page 32.
-
CA340S2Stacked yagi array- Frequency
- 326-353 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1330 mm
- Weight
- 1770 g
- Wind load
- 90 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA340S2+Directional stacked yagi array- Frequency
- 326-353 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1385 mm
- Weight
- 2190 g
- Wind load
- 158 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA340S2++Directional stacked yagi array- Frequency
- 326-353 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1385 mm
- Weight
- 2570 g
- Wind load
- 222 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA340S2+++Directional stacked yagi array- Frequency
- 326-353 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1385 mm
- Weight
- 2990 g
- Wind load
- 290 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA340S2++++Directional stacked yagi array- Frequency
- 326-353 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1390 mm
- Weight
- 3390 g
- Wind load
- 358 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA340S3Three-element stacked array- Frequency
- 326-353 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2215 mm
- Weight
- 2800 g
- Wind load
- 135 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA340S4Four-element stacked array- Frequency
- 326-353 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3100 mm
- Weight
- 3830 g
- Wind load
- 180 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA340YDirectional yagi- Frequency
- 326-353 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 320 mm
- Weight
- 740 g
- Wind load
- 45 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA340Y+Directional yagi- Frequency
- 326-353 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 675 mm
- Weight
- 950 g
- Wind load
- 79 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA340Y++Directional yagi- Frequency
- 326-353 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1040 mm
- Weight
- 1140 g
- Wind load
- 111 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-

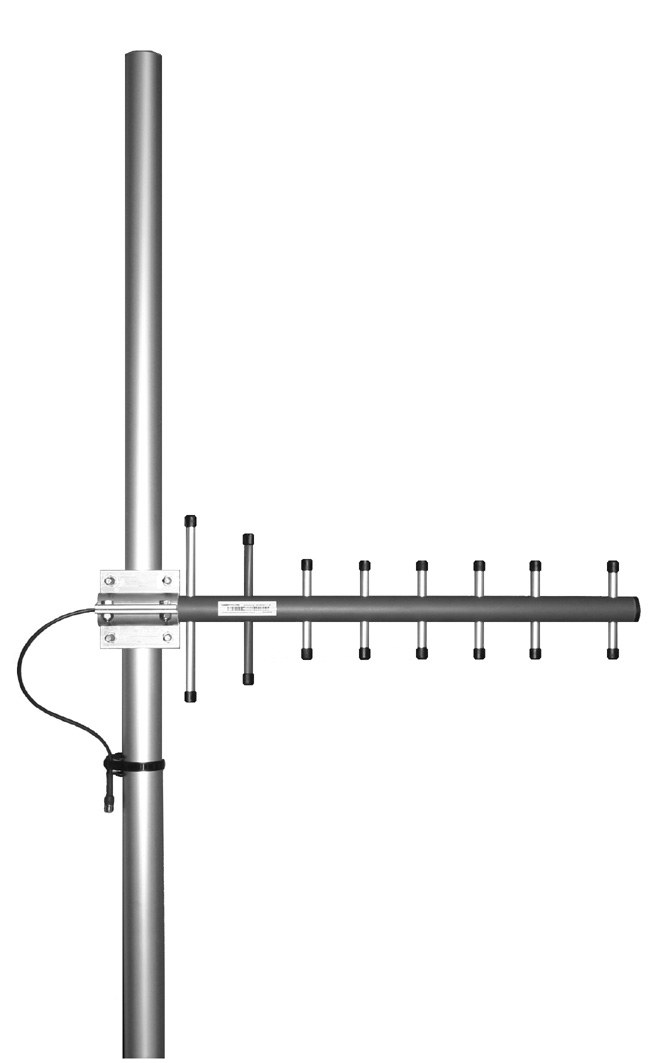

CA340Y+++Directional yagi- Frequency
- 326-353 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1420 mm
- Weight
- 1350 g
- Wind load
- 145 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-

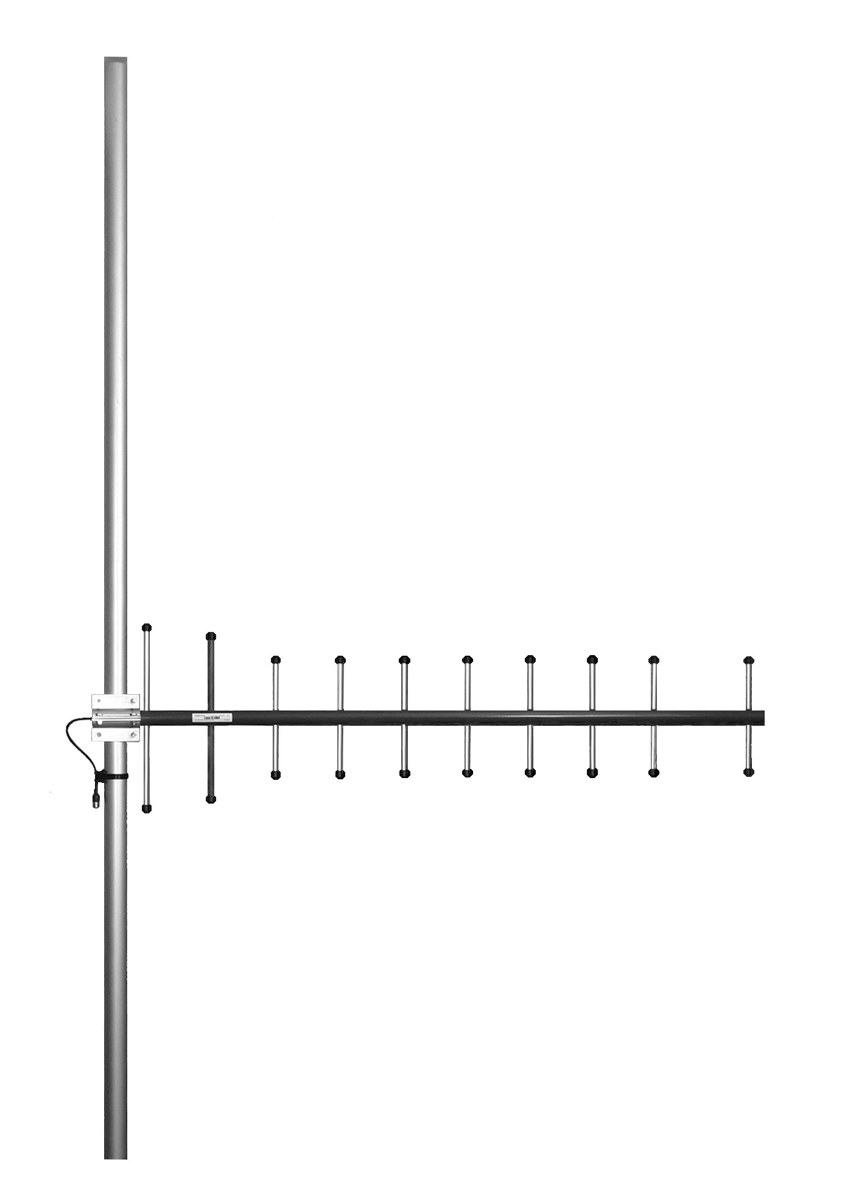

CA340Y++++Directional yagi- Frequency
- 326-353 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1830 mm
- Weight
- 1550 g
- Wind load
- 179 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
336–364 MHz 16
-
CA350F2+Directional end fire yagi array- Frequency
- 336-364 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1205 mm
- Weight
- 2170 g
- Wind load
- 152 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA350F2++Directional end fire yagi array- Frequency
- 336-364 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1925 mm
- Weight
- 2510 g
- Wind load
- 216 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 52º*
- Vertical beamwidth (−3 dB)
- 46º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++ family, ComAnt catalog (March 2026), page 30.
-
CA350F2+++Directional end fire yagi array- Frequency
- 336-364 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2665 mm
- Weight
- 2910 g
- Wind load
- 282 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 42º*
- Vertical beamwidth (−3 dB)
- 38º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++ family, ComAnt catalog (March 2026), page 31.
-
CA350F2++++Directional end fire yagi array- Frequency
- 336-364 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3455 mm
- Weight
- 3370 g
- Wind load
- 348 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 38º*
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++++ family, ComAnt catalog (March 2026), page 32.
-
CA350S2Stacked yagi array- Frequency
- 336-364 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1290 mm
- Weight
- 1750 g
- Wind load
- 88 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA350S2+Directional stacked yagi array- Frequency
- 336-364 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1340 mm
- Weight
- 2170 g
- Wind load
- 152 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA350S2++Directional stacked yagi array- Frequency
- 336-364 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1340 mm
- Weight
- 2510 g
- Wind load
- 216 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA350S2+++Directional stacked yagi array- Frequency
- 336-364 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1340 mm
- Weight
- 2910 g
- Wind load
- 282 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA350S2++++Directional stacked yagi array- Frequency
- 336-364 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1350 mm
- Weight
- 3370 g
- Wind load
- 348 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA350S3Three-element stacked array- Frequency
- 336-364 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2145 mm
- Weight
- 2770 g
- Wind load
- 132 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA350S4Four-element stacked array- Frequency
- 336-364 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3000 mm
- Weight
- 3790 g
- Wind load
- 176 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA350YDirectional yagi- Frequency
- 336-364 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 310 mm
- Weight
- 730 g
- Wind load
- 44 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA350Y+Directional yagi- Frequency
- 336-364 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 650 mm
- Weight
- 940 g
- Wind load
- 76 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA350Y++Directional yagi- Frequency
- 336-364 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1010 mm
- Weight
- 1110 g
- Wind load
- 108 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA350Y+++Directional yagi- Frequency
- 336-364 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1380 mm
- Weight
- 1310 g
- Wind load
- 141 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-

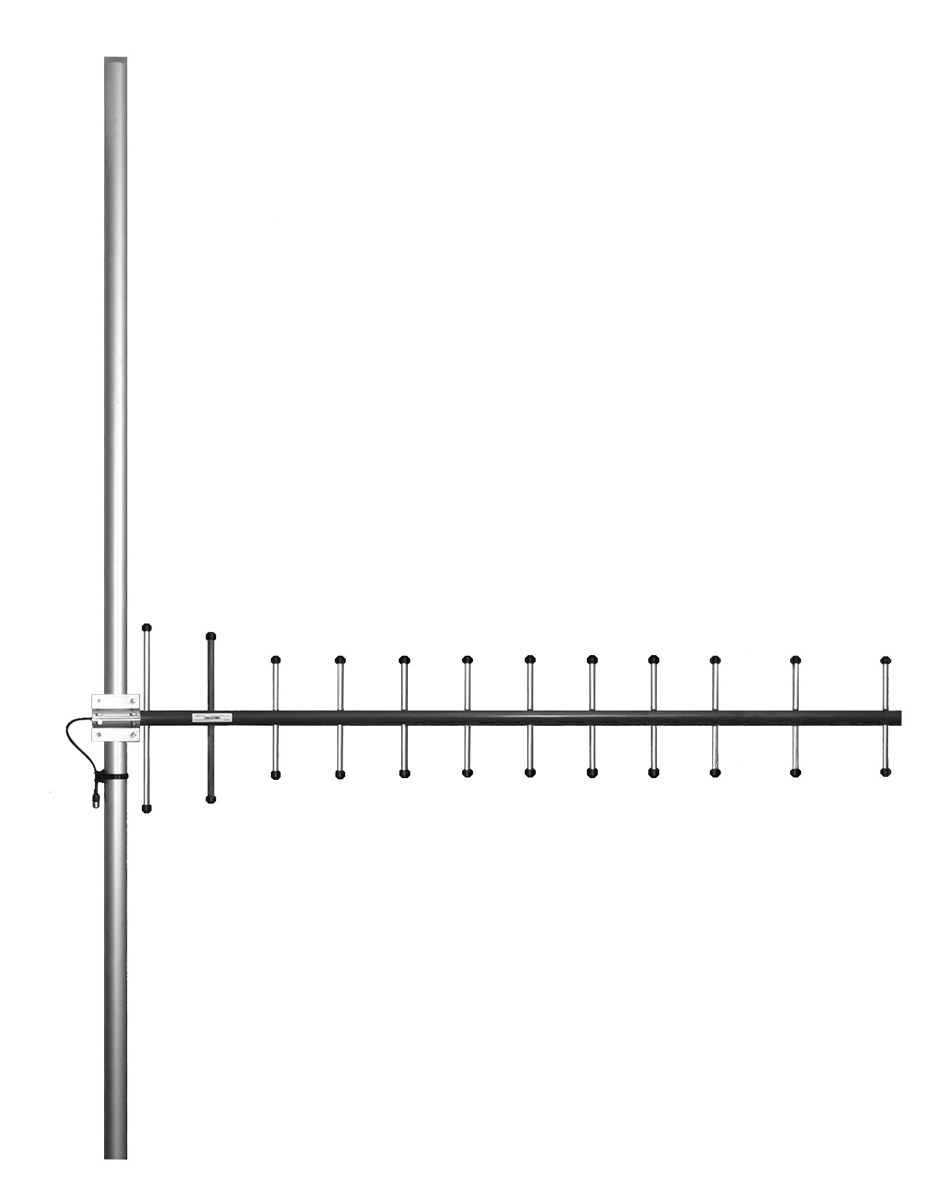

CA350Y++++Directional yagi- Frequency
- 336-364 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1775 mm
- Weight
- 1540 g
- Wind load
- 174 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
365–395 MHz 16
-
CA380F2+Directional end fire yagi array- Frequency
- 365-395 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1135 mm
- Weight
- 2090 g
- Wind load
- 144 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA380F2++Directional end fire yagi array- Frequency
- 365-395 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1780 mm
- Weight
- 2450 g
- Wind load
- 202 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 52º*
- Vertical beamwidth (−3 dB)
- 46º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++ family, ComAnt catalog (March 2026), page 30.
-
CA380F2+++Directional end fire yagi array- Frequency
- 365-395 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2475 mm
- Weight
- 2820 g
- Wind load
- 264 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 42º*
- Vertical beamwidth (−3 dB)
- 38º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++ family, ComAnt catalog (March 2026), page 31.
-
CA380F2++++Directional end fire yagi array- Frequency
- 365-395 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3205 mm
- Weight
- 3160 g
- Wind load
- 322 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 38º*
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++++ family, ComAnt catalog (March 2026), page 32.
-
CA380S2Stacked yagi array- Frequency
- 365-395 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1190 mm
- Weight
- 1750 g
- Wind load
- 84 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA380S2+Directional stacked yagi array- Frequency
- 365-395 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1235 mm
- Weight
- 2090 g
- Wind load
- 144 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA380S2++Directional stacked yagi array- Frequency
- 365-395 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1235 mm
- Weight
- 2450 g
- Wind load
- 202 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA380S2+++Directional stacked yagi array- Frequency
- 365-395 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1235 mm
- Weight
- 2820 g
- Wind load
- 264 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA380S2++++Directional stacked yagi array- Frequency
- 365-395 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1245 mm
- Weight
- 3160 g
- Wind load
- 322 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA380S3Three-element stacked array- Frequency
- 365-395 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1980 mm
- Weight
- 2765 g
- Wind load
- 126 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA380S4Four-element stacked array- Frequency
- 365-395 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2770 mm
- Weight
- 3780 g
- Wind load
- 168 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA380YDirectional yagi- Frequency
- 365-395 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 300 mm
- Weight
- 735 g
- Wind load
- 42 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA380Y+Directional yagi- Frequency
- 365-395 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 615 mm
- Weight
- 905 g
- Wind load
- 72 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA380Y++Directional yagi- Frequency
- 365-395 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 940 mm
- Weight
- 1085 g
- Wind load
- 101 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA380Y+++Directional yagi- Frequency
- 365-395 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1285 mm
- Weight
- 1270 g
- Wind load
- 132 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-
CA380Y++++Directional yagi- Frequency
- 365-395 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1650 mm
- Weight
- 1440 g
- Wind load
- 161 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
380–410 MHz 16
-
CA400F2+Directional end fire yagi array- Frequency
- 380-410 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1105 mm
- Weight
- 2080 g
- Wind load
- 140 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA400F2++Directional end fire yagi array- Frequency
- 380-410 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1705 mm
- Weight
- 2380 g
- Wind load
- 196 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 52º*
- Vertical beamwidth (−3 dB)
- 46º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++ family, ComAnt catalog (March 2026), page 30.
-
CA400F2+++Directional end fire yagi array- Frequency
- 380-410 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2385 mm
- Weight
- 2790 g
- Wind load
- 252 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 42º*
- Vertical beamwidth (−3 dB)
- 38º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++ family, ComAnt catalog (March 2026), page 31.
-
CA400F2++++Directional end fire yagi array- Frequency
- 380-410 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3085 mm
- Weight
- 3090 g
- Wind load
- 310 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 38º*
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++++ family, ComAnt catalog (March 2026), page 32.
-
CA400S2Stacked yagi array- Frequency
- 380-410 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1145 mm
- Weight
- 1710 g
- Wind load
- 82 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA400S2+Directional stacked yagi array- Frequency
- 380-410 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1180 mm
- Weight
- 2080 g
- Wind load
- 140 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA400S2++Directional stacked yagi array- Frequency
- 380-410 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1180 mm
- Weight
- 2380 g
- Wind load
- 196 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA400S2+++Directional stacked yagi array- Frequency
- 380-410 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1180 mm
- Weight
- 2790 g
- Wind load
- 252 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA400S2++++Directional stacked yagi array- Frequency
- 380-410 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1195 mm
- Weight
- 3090 g
- Wind load
- 310 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA400S3Three-element stacked array- Frequency
- 380-410 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1905 mm
- Weight
- 2700 g
- Wind load
- 123 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA400S4Four-element stacked array- Frequency
- 380-410 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2665 mm
- Weight
- 3690 g
- Wind load
- 164 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA400YDirectional yagi- Frequency
- 380-410 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 290 mm
- Weight
- 720 g
- Wind load
- 41 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA400Y+Directional yagi- Frequency
- 380-410 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 600 mm
- Weight
- 905 g
- Wind load
- 70 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA400Y++Directional yagi- Frequency
- 380-410 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 900 mm
- Weight
- 1055 g
- Wind load
- 98 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA400Y+++Directional yagi- Frequency
- 380-410 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1240 mm
- Weight
- 1260 g
- Wind load
- 126 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-
CA400Y++++Directional yagi- Frequency
- 380-410 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1590 mm
- Weight
- 1410 g
- Wind load
- 155 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
405–440 MHz 19
-
CA420F2+Directional end fire yagi array- Frequency
- 405-440 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1045 mm
- Weight
- 2015 g
- Wind load
- 132 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA420F2++Directional end fire yagi array- Frequency
- 405-440 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1630 mm
- Weight
- 2325 g
- Wind load
- 184 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 52º*
- Vertical beamwidth (−3 dB)
- 46º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++ family, ComAnt catalog (March 2026), page 30.
-
CA420F2+++Directional end fire yagi array- Frequency
- 405-440 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2245 mm
- Weight
- 2495 g
- Wind load
- 238 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 42º*
- Vertical beamwidth (−3 dB)
- 38º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++ family, ComAnt catalog (March 2026), page 31.
-
CA420F2++++Directional end fire yagi array- Frequency
- 405-440 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2905 mm
- Weight
- 2995 g
- Wind load
- 292 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 38º*
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++++ family, ComAnt catalog (March 2026), page 32.
-
CA420F2+++++Directional end fire yagi array- Frequency
- 405-440 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3535 mm
- Weight
- 3335 g
- Wind load
- 346 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 35º*
- Vertical beamwidth (−3 dB)
- 33º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++++ family, ComAnt catalog (March 2026), page 33.
-
CA420S2Stacked yagi array- Frequency
- 405-440 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1070 mm
- Weight
- 1685 g
- Wind load
- 78 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA420S2+Directional stacked yagi array- Frequency
- 405-440 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1115 mm
- Weight
- 2015 g
- Wind load
- 132 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA420S2++Directional stacked yagi array- Frequency
- 405-440 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1115 mm
- Weight
- 2325 g
- Wind load
- 184 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA420S2+++Directional stacked yagi array- Frequency
- 405-440 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1115 mm
- Weight
- 2495 g
- Wind load
- 238 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA420S2++++Directional stacked yagi array- Frequency
- 405-440 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1120 mm
- Weight
- 2995 g
- Wind load
- 292 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA420S2+++++Directional stacked yagi array- Frequency
- 405-440 MHz
- Gain
- 15 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1120 mm
- Weight
- 3335 g
- Wind load
- 346 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 37º*
- Vertical beamwidth (−3 dB)
- 22º*
- Front-to-back
- 14 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++++ family, ComAnt catalog (March 2026), page 50.
-
CA420S3Three-element stacked array- Frequency
- 405-440 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1780 mm
- Weight
- 2655 g
- Wind load
- 117 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA420S4Four-element stacked array- Frequency
- 405-440 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2490 mm
- Weight
- 3625 g
- Wind load
- 156 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA420YDirectional yagi- Frequency
- 405-440 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 285 mm
- Weight
- 715 g
- Wind load
- 39 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA420Y+Directional yagi- Frequency
- 405-440 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 570 mm
- Weight
- 880 g
- Wind load
- 66 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA420Y++Directional yagi- Frequency
- 405-440 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 865 mm
- Weight
- 1035 g
- Wind load
- 92 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA420Y+++Directional yagi- Frequency
- 405-440 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1170 mm
- Weight
- 1120 g
- Wind load
- 119 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-
CA420Y++++Directional yagi- Frequency
- 405-440 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1500 mm
- Weight
- 1370 g
- Wind load
- 146 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
-
CA420Y+++++Directional yagi- Frequency
- 405-440 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1815 mm
- Weight
- 1540 g
- Wind load
- 173 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 37º*
- Vertical beamwidth (−3 dB)
- 33º*
- Front-to-back
- 14 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++++ family, ComAnt catalog (March 2026), page 63.
440–475 MHz 19
-
CA450F2+Directional end fire yagi array- Frequency
- 440-475 MHz
- Gain
- 7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 970 mm
- Weight
- 1970 g
- Wind load
- 124 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 75º*
- Vertical beamwidth (−3 dB)
- 59º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+ family, ComAnt catalog (March 2026), page 29.
-
CA450F2++Directional end fire yagi array- Frequency
- 440-475 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1500 mm
- Weight
- 2240 g
- Wind load
- 172 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 52º*
- Vertical beamwidth (−3 dB)
- 46º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++ family, ComAnt catalog (March 2026), page 30.
-
CA450F2+++Directional end fire yagi array- Frequency
- 440-475 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2075 mm
- Weight
- 2540 g
- Wind load
- 220 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 42º*
- Vertical beamwidth (−3 dB)
- 38º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++ family, ComAnt catalog (March 2026), page 31.
-
CA450F2++++Directional end fire yagi array- Frequency
- 440-475 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2675 mm
- Weight
- 2850 g
- Wind load
- 270 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 38º*
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2++++ family, ComAnt catalog (March 2026), page 32.
-
CA450F2+++++Directional end fire yagi array- Frequency
- 440-475 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 3255 mm
- Weight
- 3170 g
- Wind load
- 320 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 35º*
- Vertical beamwidth (−3 dB)
- 33º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAF2+++++ family, ComAnt catalog (March 2026), page 33.
-
CA450S2Stacked yagi array- Frequency
- 440-475 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 990 mm
- Weight
- 1650 g
- Wind load
- 76 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA450S2+Directional stacked yagi array- Frequency
- 440-475 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1030 mm
- Weight
- 1970 g
- Wind load
- 124 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA450S2++Directional stacked yagi array- Frequency
- 440-475 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1030 mm
- Weight
- 2240 g
- Wind load
- 172 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA450S2+++Directional stacked yagi array- Frequency
- 440-475 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1030 mm
- Weight
- 2540 g
- Wind load
- 220 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA450S2++++Directional stacked yagi array- Frequency
- 440-475 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1035 mm
- Weight
- 2850 g
- Wind load
- 270 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA450S2+++++Directional stacked yagi array- Frequency
- 440-475 MHz
- Gain
- 15 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1035 mm
- Weight
- 3170 g
- Wind load
- 320 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 37º*
- Vertical beamwidth (−3 dB)
- 22º*
- Front-to-back
- 14 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++++ family, ComAnt catalog (March 2026), page 50.
-
CA450S3Three-element stacked array- Frequency
- 440-475 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1645 mm
- Weight
- 2600 g
- Wind load
- 114 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA450S4Four-element stacked array- Frequency
- 440-475 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 2305 mm
- Weight
- 3550 g
- Wind load
- 152 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA450YDirectional yagi- Frequency
- 440-475 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 275 mm
- Weight
- 700 g
- Wind load
- 38 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA450Y+Directional yagi- Frequency
- 440-475 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 535 mm
- Weight
- 860 g
- Wind load
- 62 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA450Y++Directional yagi- Frequency
- 440-475 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 800 mm
- Weight
- 995 g
- Wind load
- 86 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA450Y+++Directional yagi- Frequency
- 440-475 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1085 mm
- Weight
- 1145 g
- Wind load
- 110 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-
CA450Y++++Directional yagi- Frequency
- 440-475 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1385 mm
- Weight
- 1300 g
- Wind load
- 135 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
-
CA450Y+++++Directional yagi- Frequency
- 440-475 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1675 mm
- Weight
- 1460 g
- Wind load
- 160 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 37º*
- Vertical beamwidth (−3 dB)
- 33º*
- Front-to-back
- 14 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++++ family, ComAnt catalog (March 2026), page 63.
690–960 MHz 1
-
CALTEYDirectional yagi- Frequency
- 690-960 MHz
- Gain
- 6/7 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS; PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 255 mm
- Weight
- 680 g
- Wind load
- 34 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 159/123º*
- Vertical beamwidth (−3 dB)
- 75/69º*
- Front-to-back
- 15/26 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CALTEY family, ComAnt catalog (March 2026), page 38.
830–890 MHz 12
-
CA860S2Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 535 mm
- Weight
- 1530 g
- Wind load
- 56 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA860S2+Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 575 mm
- Weight
- 1650 g
- Wind load
- 82 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA860S2++Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 575 mm
- Weight
- 1790 g
- Wind load
- 106 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA860S2+++Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 575 mm
- Weight
- 1920 g
- Wind load
- 130 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA860S2++++Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 575 mm
- Weight
- 2070 g
- Wind load
- 152 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA860S3Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 885 mm
- Weight
- 2405 g
- Wind load
- 84 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA860S4Directional stacked yagi array- Frequency
- 830-890 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1235 mm
- Weight
- 3280 g
- Wind load
- 112 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA860YDirectional yagi- Frequency
- 830-890 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 215 mm
- Weight
- 655 g
- Wind load
- 28 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA860Y+Directional yagi- Frequency
- 830-890 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 355 mm
- Weight
- 715 g
- Wind load
- 41 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA860Y++Directional yagi- Frequency
- 830-890 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 515 mm
- Weight
- 785 g
- Wind load
- 53 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA860Y+++Directional yagi- Frequency
- 830-890 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 660 mm
- Weight
- 850 g
- Wind load
- 65 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-
CA860Y++++Directional yagi- Frequency
- 830-890 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 815 mm
- Weight
- 925 g
- Wind load
- 76 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
880–960 MHz 12
-
CA930S2Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 9 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 505 mm
- Weight
- 1505 g
- Wind load
- 54 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 178º*
- Vertical beamwidth (−3 dB)
- 27º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2 family, ComAnt catalog (March 2026), page 45.
-
CA930S2+Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 530 mm
- Weight
- 1625 g
- Wind load
- 78 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 85º*
- Vertical beamwidth (−3 dB)
- 26º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
* From CompleTech's datasheet for the CAS2+ family, ComAnt catalog (March 2026), page 46.
-
CA930S2++Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 13 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 530 mm
- Weight
- 1755 g
- Wind load
- 100 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 62º*
- Vertical beamwidth (−3 dB)
- 25º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++ family, ComAnt catalog (March 2026), page 47.
-
CA930S2+++Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 13.5 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 530 mm
- Weight
- 1885 g
- Wind load
- 122 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 49º*
- Vertical beamwidth (−3 dB)
- 24º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2+++ family, ComAnt catalog (March 2026), page 48.
-
CA930S2++++Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 14 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 530 mm
- Weight
- 2005 g
- Wind load
- 146 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 43º*
- Vertical beamwidth (−3 dB)
- 23º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS2++++ family, ComAnt catalog (March 2026), page 49.
-
CA930S3Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 830 mm
- Weight
- 2365 g
- Wind load
- 81 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 173º*
- Vertical beamwidth (−3 dB)
- 20º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS3 family, ComAnt catalog (March 2026), page 51.
-
CA930S4Directional stacked yagi array- Frequency
- 880-960 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1155 mm
- Weight
- 3225 g
- Wind load
- 108 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 176º*
- Vertical beamwidth (−3 dB)
- 13º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAS4 family, ComAnt catalog (March 2026), page 52.
-
CA930YDirectional yagi- Frequency
- 880-960 MHz
- Gain
- 6 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 210 mm
- Weight
- 645 g
- Wind load
- 27 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 174º*
- Vertical beamwidth (−3 dB)
- 77º*
- Front-to-back
- 11 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY family, ComAnt catalog (March 2026), page 58.
-
CA930Y+Directional yagi- Frequency
- 880-960 MHz
- Gain
- 8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 340 mm
- Weight
- 705 g
- Wind load
- 39 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 80º*
- Vertical beamwidth (−3 dB)
- 57º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+ family, ComAnt catalog (March 2026), page 59.
-
CA930Y++Directional yagi- Frequency
- 880-960 MHz
- Gain
- 10 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 485 mm
- Weight
- 770 g
- Wind load
- 50 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 59º*
- Vertical beamwidth (−3 dB)
- 47º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++ family, ComAnt catalog (March 2026), page 60.
-
CA930Y+++Directional yagi- Frequency
- 880-960 MHz
- Gain
- 11 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 630 mm
- Weight
- 835 g
- Wind load
- 61 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 48º*
- Vertical beamwidth (−3 dB)
- 41º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY+++ family, ComAnt catalog (March 2026), page 61.
-
CA930Y++++Directional yagi- Frequency
- 880-960 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 815 mm
- Weight
- 895 g
- Wind load
- 73 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 46º*
- Vertical beamwidth (−3 dB)
- 39º*
- Front-to-back
- 12 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAY++++ family, ComAnt catalog (March 2026), page 62.
880–960/1710–2170 MHz 1
-
CACELYDirectional yagi- Frequency
- 880-960/1710-2170 MHz
- Gain
- 6/8 dBi
- Polarization
- vertical/horizontal
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS; PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 230 mm
- Weight
- 650 g
- Wind load
- 32 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 162/126º*
- Vertical beamwidth (−3 dB)
- 73/68º*
- Front-to-back
- 10/24 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CACELY family, ComAnt catalog (March 2026), page 25.
2300–2500 MHz 1
-
CA2400RReflector monopole- Frequency
- 2300-2500 MHz
- Gain
- 12 dBi
- Polarization
- vertical/horizontal
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- PP; PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 90 mm
- Weight
- 690 g
- Wind load
- 25 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 54º*
- Vertical beamwidth (−3 dB)
- 45º*
- Front-to-back
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAR family, ComAnt catalog (March 2026), page 44.
Need it built, not just bought?
Our UL 508A panel shop in Brookfield, Wisconsin builds radio and telemetry enclosures: the radio, the lightning protection and the cabling, wired and tested. Build to print or PLC and control panels.
