Power splitters, ring hybrids and RF accessories

23 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.

Representative photo. Your part may look different.

The CS "2 to 1 power combiner / 1 to 2 power splitter" for combining antennas into arrays, the RH ring hybrid for "dual radios connected to a single antenna", TM 50-ohm terminations (1, 5 or 10 W) and IT impedance tuners (ComAnt catalog, pp. 67, 72, 76 and 80). Combining antennas and radios.

0–4000 MHz 1

0–7000 MHz 1

0–18000 MHz 1

80–90 MHz 1

100–200 MHz 1

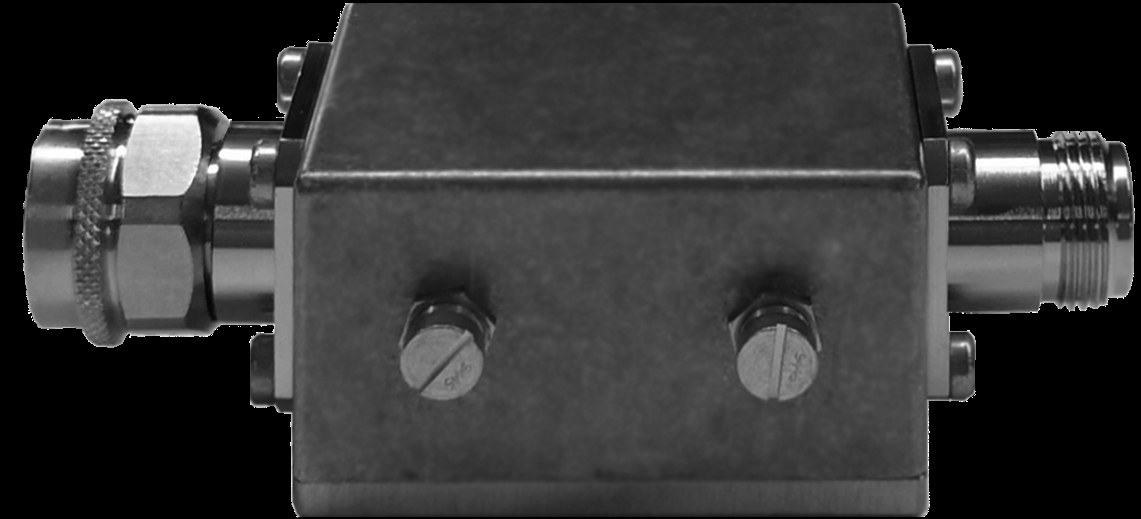

  • IT150Antenna circuit impedance tuner
    Frequency
    100-200 MHz
    Connector
    N-female – N-male
    VSWR
    =1.0
    More specifications
    Length
    95 mm
    Weight
    135 g
    Insertion loss
    < 0.1 dB*
    Temperature
    -40ºC - +80ºC*
    IP rating
    54*

    * From CompleTech's datasheet for the IT family, ComAnt catalog (March 2026), page 72.

    + Add to quoteView on GrossAutomation.comDatasheet (PDF)

135–145 MHz 1

144–156 MHz 1

154–166 MHz 1

163–177 MHz 1

221–239 MHz 1

300–500 MHz 1

  • IT400Antenna circuit impedance tuner
    Frequency
    300-500 MHz
    Connector
    N-female – N-male
    VSWR
    =1.0
    More specifications
    Length
    95 mm
    Weight
    135 g
    Insertion loss
    < 0.1 dB*
    Temperature
    -40ºC - +80ºC*
    IP rating
    54*

    * From CompleTech's datasheet for the IT family, ComAnt catalog (March 2026), page 72.

    + Add to quoteView on GrossAutomation.comDatasheet (PDF)

326–353 MHz 1

336–364 MHz 1

365–395 MHz 1

380–410 MHz 1

405–440 MHz 1

440–475 MHz 1

703–803 MHz 1

791–862 MHz 1

830–890 MHz 1

880–960 MHz 1

2412–2484 MHz 1

Other parts 1

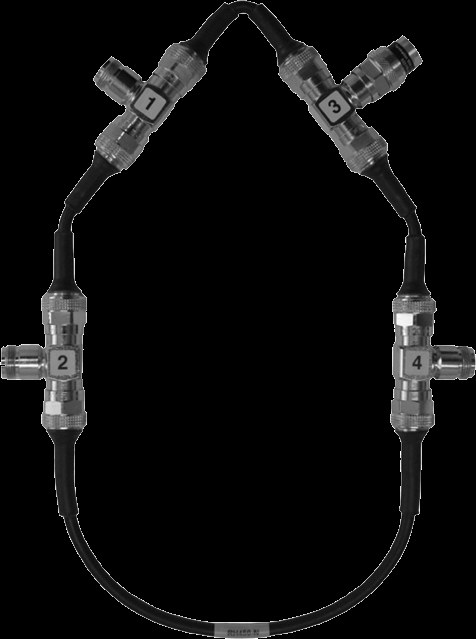

  • RHRing hybrid combiner/splitter
    Frequency
    f₀ ±3.8% MHz
    Connector
    4*N-female
    VSWR
    <1.2
    More specifications
    Insertion loss
    < 3.25 dB*
    Isolation
    30 - 70 dB*
    Temperature
    -35ºC - +80ºC*
    IP rating
    67*

    * From CompleTech's datasheet for the RH family, ComAnt catalog (March 2026), page 76.

    + Add to quoteView on GrossAutomation.comDatasheet (PDF)
