Vehicle and portable antennas
24 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.
The CAV vehicular antenna (2 dBi), the CAQ sleeve-fed quarter-wave whip ("optimized impedance match with reduced size ground plane") and the CAH center-fed half-wave whip ("no ground plane required"). The whips are "directly connected to radio" (ComAnt catalog, pp. 37, 43 and 53).
When you order, add the connector to the part number: -N, -TNC, -BNC, -SMA or -7/16 (CompleTech's product list). We confirm it on the quote.
No listed part matches. Send us the frequency or the system and we will find it.
Request a quote221–239 MHz 1
-
CA230VVehicular antenna- Frequency
- 221-239 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 345 mm
- Weight
- 345 g
- Wind load
- 22 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
225–235 MHz 1
-

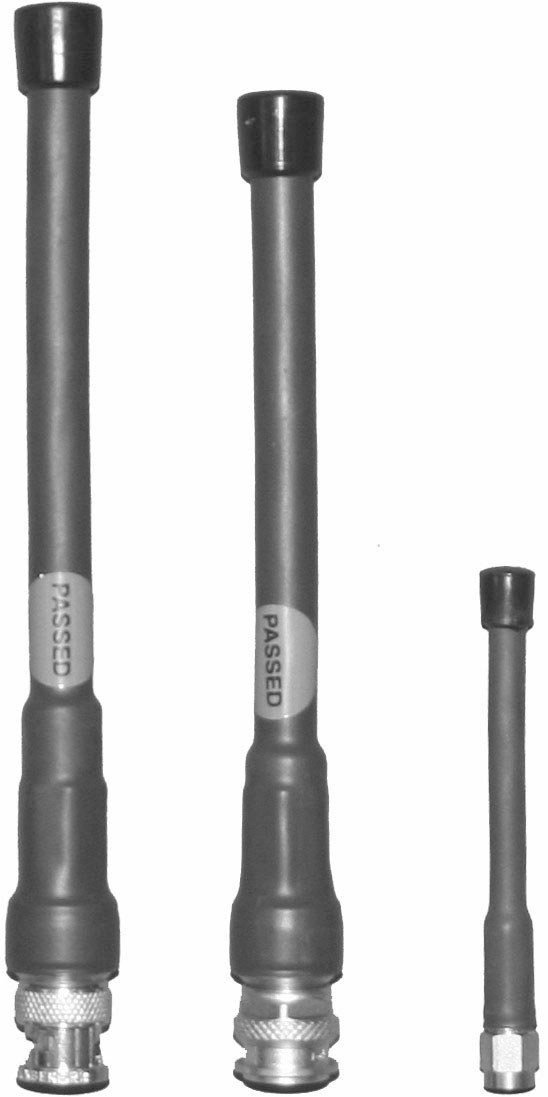

CA230QSleeve fed quarter wave whip- Frequency
- 225-235 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 300 mm
- Weight
- 70 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
336–364 MHz 2
-
CA350QSleeve fed quarter wave whip- Frequency
- 336-364 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 205 mm
- Weight
- 60 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA350VVehicular antenna- Frequency
- 336-364 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 225 mm
- Weight
- 300 g
- Wind load
- 15 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
370–390 MHz 2
-
CA380QSleeve fed quarter wave whip- Frequency
- 370-390 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 180 mm
- Weight
- 50 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA380VVehicular antenna- Frequency
- 370-390 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 200 mm
- Weight
- 290 g
- Wind load
- 14 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
380–400 MHz 2
-
CA390QSleeve fed quarter wave whip- Frequency
- 380-400 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 175 mm
- Weight
- 50 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA390VVehicular antenna- Frequency
- 380-400 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 195 mm
- Weight
- 290 g
- Wind load
- 14 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
405–440 MHz 3
-

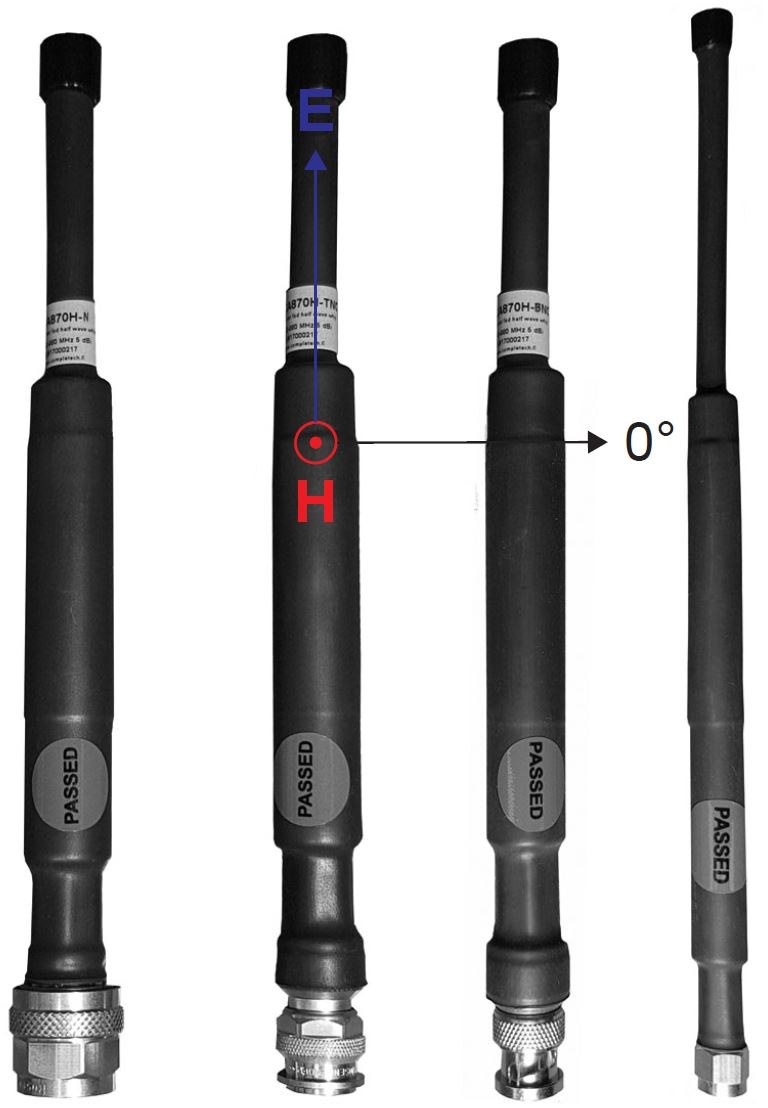

CA420HCenter fed half wave whip- Frequency
- 405-440 MHz
- Connector
- BNC-/N-/SMA-/TNC-male
More specifications
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAH family, ComAnt catalog (March 2026), page 37.
-
CA420QSleeve fed quarter wave whip- Frequency
- 405-440 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 170 mm
- Weight
- 50 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA420VVehicular antenna- Frequency
- 405-440 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 185 mm
- Weight
- 285 g
- Wind load
- 13 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
440–475 MHz 3
-
CA450HCenter fed half wave whip- Frequency
- 440-475 MHz
- Connector
- BNC-/N-/SMA-/TNC-male
More specifications
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAH family, ComAnt catalog (March 2026), page 37.
-
CA450QSleeve fed quarter wave whip- Frequency
- 440-475 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 155 mm
- Weight
- 50 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA450VVehicular antenna- Frequency
- 440-475 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 170 mm
- Weight
- 280 g
- Wind load
- 13 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
791–862 MHz 1
-
CA830VVehicular antenna- Frequency
- 791-862 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 90 mm
- Weight
- 210 g
- Wind load
- 7 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
830–890 MHz 2
-
CA860QSleeve fed quarter wave whip- Frequency
- 830-890 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- SMA-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 75 mm
- Weight
- 10 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA860VVehicular antenna- Frequency
- 830-890 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 90 mm
- Weight
- 210 g
- Wind load
- 7 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
860–880 MHz 1
-
CA870HCenter fed half wave whip- Frequency
- 860-880 MHz
- Gain
- 5 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 205 mm
- Weight
- 75 g
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAH family, ComAnt catalog (March 2026), page 37.
880–960 MHz 2
-
CA930QSleeve fed quarter wave whip- Frequency
- 880-960 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- SMA-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 70 mm
- Weight
- 10 g
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAQ family, ComAnt catalog (March 2026), page 43.
-
CA930VVehicular antenna- Frequency
- 880-960 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 90 mm
- Weight
- 210 g
- Wind load
- 7 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
900–930 MHz 1
-
CA915HCenter fed half wave whip- Frequency
- 900-930 MHz
- Gain
- 5 dBi
- Polarization
- vertical
- Connector
- BNC-/N-/SMA-/TNC-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 195 mm
- Weight
- 64 g
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAH family, ComAnt catalog (March 2026), page 37.
2300–2500 MHz 1
-
CA2400VVehicular antenna- Frequency
- 2300-2500 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 90 mm
- Weight
- 210 g
- Wind load
- 7 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
2400–2500 MHz 1
-
CA2400HCenter fed half wave whip- Frequency
- 2400-2500 MHz
- Gain
- 5 dBi
- Polarization
- vertical
- Connector
- SMA-male
- VSWR
- <1.5
More specifications
- Radome
- PE
- Radiator
- copper
- Length
- 105 mm
- Weight
- 15 g
- Vertical beamwidth (−3 dB)
- 35º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 62*
* From CompleTech's datasheet for the CAH family, ComAnt catalog (March 2026), page 37.
5150–5725 MHz 1
-
CA5400VVehicular antenna- Frequency
- 5150-5725 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- 4 pcs M5*20
- Length
- 90 mm
- Weight
- 210 g
- Wind load
- 7 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAV family, ComAnt catalog (March 2026), page 53.
Need it built, not just bought?
Our UL 508A panel shop in Brookfield, Wisconsin builds radio and telemetry enclosures: the radio, the lightning protection and the cabling, wired and tested. Build to print or PLC and control panels.
