Ground planes and omnidirectional antennas
37 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.
All-round coverage: ComAnt ground planes (CAGP, 2 dBi) and the CAO omnidirectional coaxial dipole, plus the CAAIRGP ground plane for the aviation band (117.975–137.000 MHz on CompleTech's datasheet, ComAnt catalog p. 19). Omnis suit mobile users and sites that talk in every direction. How a ground plane works.
When you order, add the connector to the part number: -N, -TNC, -BNC, -SMA or -7/16 (CompleTech's product list). We confirm it on the quote.
No listed part matches. Send us the frequency or the system and we will find it.
Request a quote68–72 MHz 1
-
CA70GPOmnidirectional ground plane- Frequency
- 68-72 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 990 mm
- Weight
- 1800 g
- Wind load
- 76 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
73–77 MHz 1
-
CA75GPOmnidirectional ground plane- Frequency
- 73-77 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 930 mm
- Weight
- 1700 g
- Wind load
- 73 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
77–81 MHz 1
-
CA80GPOmnidirectional ground plane- Frequency
- 77-81 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 880 mm
- Weight
- 1650 g
- Wind load
- 70 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
83–87 MHz 1
-
CA85GPOmnidirectional ground plane- Frequency
- 83-87 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 820 mm
- Weight
- 1600 g
- Wind load
- 67 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
118–137 MHz 1
-

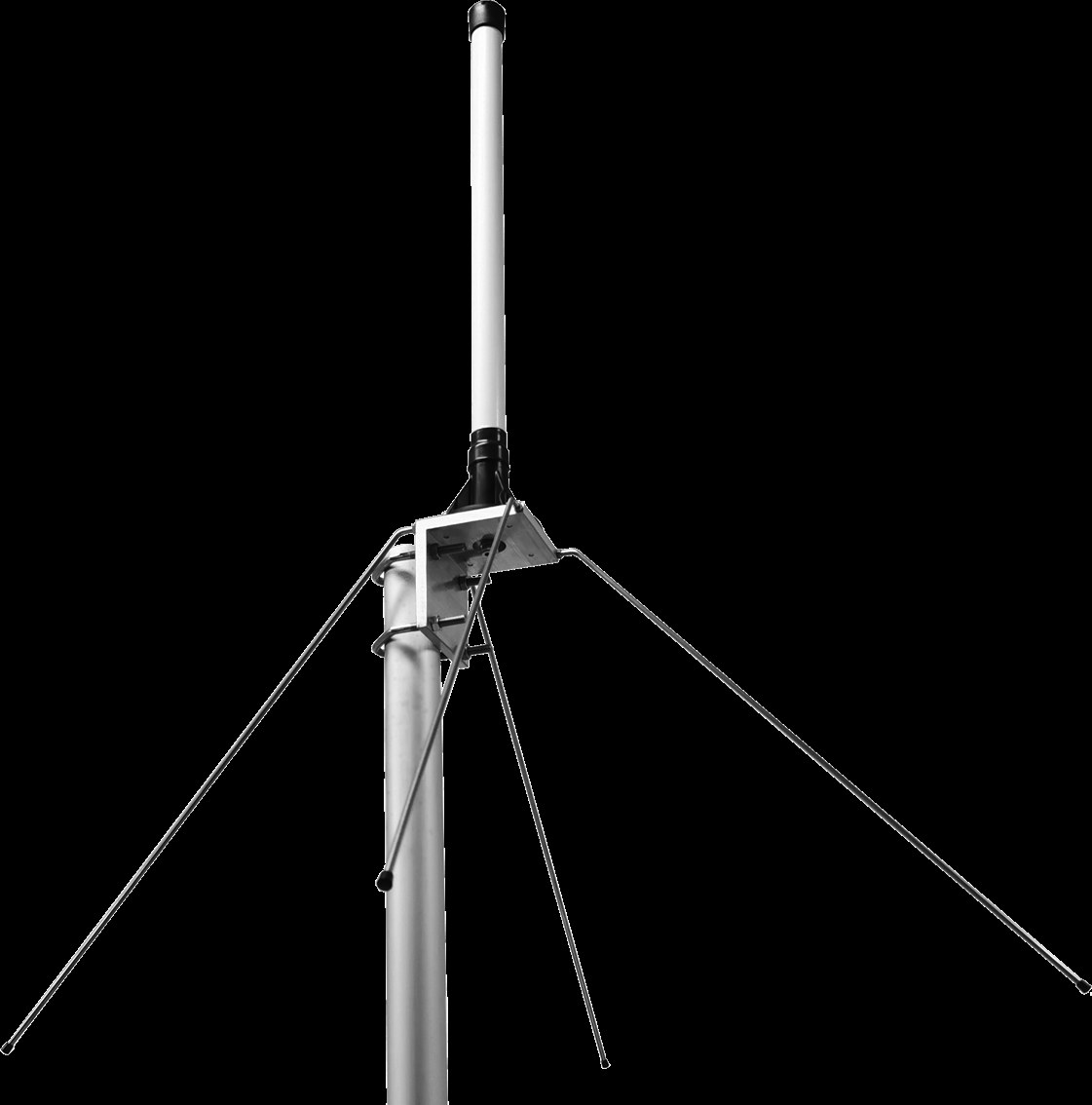

CAAIRGPOmnidirectional ground plane- Frequency
- 118-137 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <2.0
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 560 mm
- Weight
- 1360 g
- Wind load
- 52 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAAIRGP family, ComAnt catalog (March 2026), page 19.
135–145 MHz 1
-
CA140GPOmnidirectional ground plane- Frequency
- 135-145 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 510 mm
- Weight
- 1300 g
- Wind load
- 49 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
144–156 MHz 1
-
CA150GPOmnidirectional ground plane- Frequency
- 144-156 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 485 mm
- Weight
- 1260 g
- Wind load
- 47 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
154–166 MHz 1
-
CA160GPOmnidirectional ground plane- Frequency
- 154-166 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 455 mm
- Weight
- 1235 g
- Wind load
- 46 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
163–177 MHz 1
-
CA170GPOmnidirectional ground plane- Frequency
- 163-177 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 430 mm
- Weight
- 1210 g
- Wind load
- 45 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
326–353 MHz 1
-

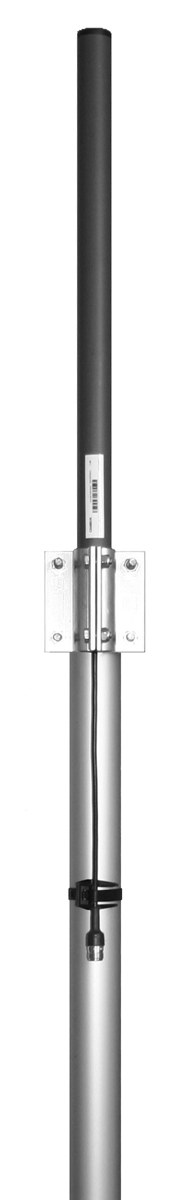

CA340OOmnidirectional coaxial dipole- Frequency
- 326-353 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 800 mm
- Weight
- 795 g
- Wind load
- 55 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
336–364 MHz 2
-
CA350GPOmnidirectional ground plane- Frequency
- 336-364 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 235 mm
- Weight
- 1000 g
- Wind load
- 34 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
-
CA350OOmnidirectional coaxial dipole- Frequency
- 336-364 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 770 mm
- Weight
- 790 g
- Wind load
- 55 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
380–410 MHz 1
-
CA400OOmnidirectional coaxial dipole- Frequency
- 380-410 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 695 mm
- Weight
- 780 g
- Wind load
- 49 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
380–430 MHz 1
-
CA410GPOmnidirectional ground plane- Frequency
- 380-430 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 210 mm
- Weight
- 955 g
- Wind load
- 32 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
401–409 MHz 1
-

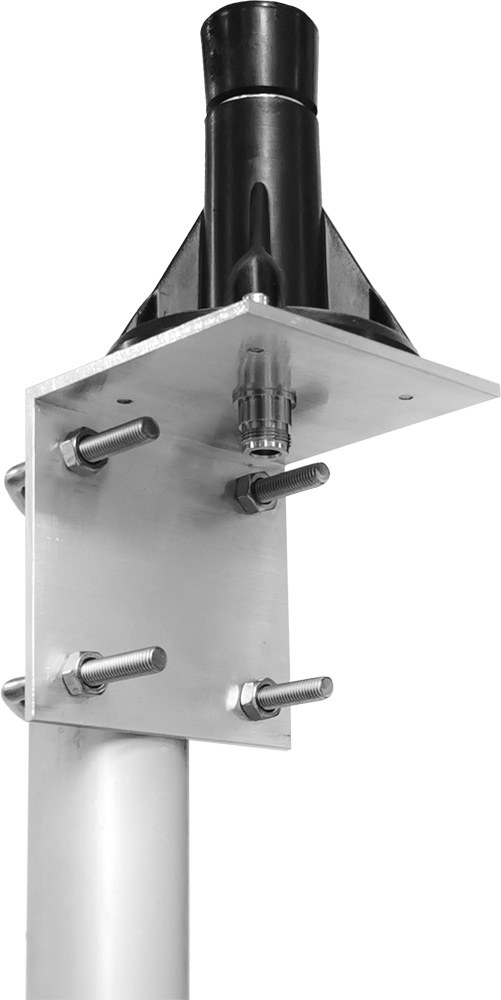

CA405GP+Omnidirectional ground plane- Frequency
- 401-409 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 470 mm
- Weight
- 1030 g
- Wind load
- 46 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
405–440 MHz 1
-
CA420OOmnidirectional coaxial dipole- Frequency
- 405-440 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 655 mm
- Weight
- 765 g
- Wind load
- 47 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
406–414 MHz 1
-
CA410GP+Omnidirectional ground plane- Frequency
- 406-414 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 465 mm
- Weight
- 1030 g
- Wind load
- 45 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
416–424 MHz 1
-
CA420GP+Omnidirectional ground plane- Frequency
- 416-424 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 450 mm
- Weight
- 1030 g
- Wind load
- 45 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
426–434 MHz 1
-
CA430GP+Omnidirectional ground plane- Frequency
- 426-434 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 440 mm
- Weight
- 1025 g
- Wind load
- 44 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
430–475 MHz 2
-
CA450GPOmnidirectional ground plane- Frequency
- 430-475 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 190 mm
- Weight
- 945 g
- Wind load
- 31 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
-
CA450GP-N_FMOmnidirectional ground plane- Frequency
- 430-475 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 190 mm
- Weight
- 945 g
- Wind load
- 31 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
431–439 MHz 1
-
CA435GP+Omnidirectional ground plane- Frequency
- 431-439 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 435 mm
- Weight
- 1020 g
- Wind load
- 44 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
436–444 MHz 1
-
CA440GP+Omnidirectional ground plane- Frequency
- 436-444 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 430 mm
- Weight
- 1015 g
- Wind load
- 43 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
440–475 MHz 1
-
CA450OOmnidirectional coaxial dipole- Frequency
- 440-475 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 615 mm
- Weight
- 750 g
- Wind load
- 44 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
441–449 MHz 1
-
CA445GP+Omnidirectional ground plane- Frequency
- 441-449 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 425 mm
- Weight
- 1015 g
- Wind load
- 43 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
446–454 MHz 1
-
CA450GP+Omnidirectional ground plane- Frequency
- 446-454 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 420 mm
- Weight
- 1015 g
- Wind load
- 43 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
456–464 MHz 1
-
CA460GP+Omnidirectional ground plane- Frequency
- 456-464 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 410 mm
- Weight
- 1010 g
- Wind load
- 42 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
465–475 MHz 1
-
CA470GP+Omnidirectional ground plane- Frequency
- 465-475 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 400 mm
- Weight
- 1010 g
- Wind load
- 42 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
830–890 MHz 2
-
CA860GPOmnidirectional ground plane- Frequency
- 830-890 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 90 mm
- Weight
- 835 g
- Wind load
- 25 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
-
CA860OOmnidirectional coaxial dipole- Frequency
- 830-890 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 375 mm
- Weight
- 655 g
- Wind load
- 31 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
860–880 MHz 1
-
CA870GP+Omnidirectional ground plane- Frequency
- 860-880 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 215 mm
- Weight
- 885 g
- Wind load
- 32 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
880–960 MHz 2
-
CA930GPOmnidirectional ground plane- Frequency
- 880-960 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 90 mm
- Weight
- 835 g
- Wind load
- 25 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
-
CA930OOmnidirectional coaxial dipole- Frequency
- 880-960 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 360 mm
- Weight
- 645 g
- Wind load
- 30 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 81º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAO family, ComAnt catalog (March 2026), page 42.
2300–2500 MHz 1
-
CA2400GPOmnidirectional ground plane- Frequency
- 2300-2500 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- PP; PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 90 mm
- Weight
- 490 g
- Wind load
- 25 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
2412–2484 MHz 1
-
CA2450GP+Omnidirectional ground plane- Frequency
- 2412-2484 MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 115 mm
- Weight
- 525 g
- Wind load
- 26 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
5150–5725 MHz 1
-
CA5400GPOmnidirectional ground plane- Frequency
- 5150-5725 MHz
- Gain
- 2 dBi
- Polarization
- vertical
- Connector
- N-female
- VSWR
- <1.5
More specifications
- Radome
- PP; PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 90 mm
- Weight
- 490 g
- Wind load
- 25 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 87º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP family, ComAnt catalog (March 2026), page 35.
Other parts 1
-
CA350GP+Omnidirectional ground plane- Frequency
- 336-364; f₀ ±1% MHz
- Gain
- 6 dBi
- Polarization
- vertical
- Connector
- N-/TNC-female
- VSWR
- <1.5
More specifications
- Radome
- FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 580 mm
- Weight
- 1230 g
- Wind load
- 50 N @ 150 km/h
- Vertical beamwidth (−3 dB)
- 34º*
- Front-to-back
- 0 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAGP+ family, ComAnt catalog (March 2026), page 36.
Need it built, not just bought?
Our UL 508A panel shop in Brookfield, Wisconsin builds radio and telemetry enclosures: the radio, the lightning protection and the cabling, wired and tested. Build to print or PLC and control panels.
