Cross-polarized yagis
21 CompleTech part numbers. Pick the frequency band, compare the specifications, request a quote.
CompleTech's description: "cross-polarized yagi, dual feed, physically quarter wavelength along the boom phased", with polarization listed as "circular/slanted" (ComAnt catalog). Gain is given per feed, for example 6/6 dBi.
When you order, add the connector to the part number: -N, -TNC, -BNC, -SMA or -7/16 (CompleTech's product list). We confirm it on the quote.
No listed part matches. Send us the frequency or the system and we will find it.
Request a quote380–410 MHz 3
-

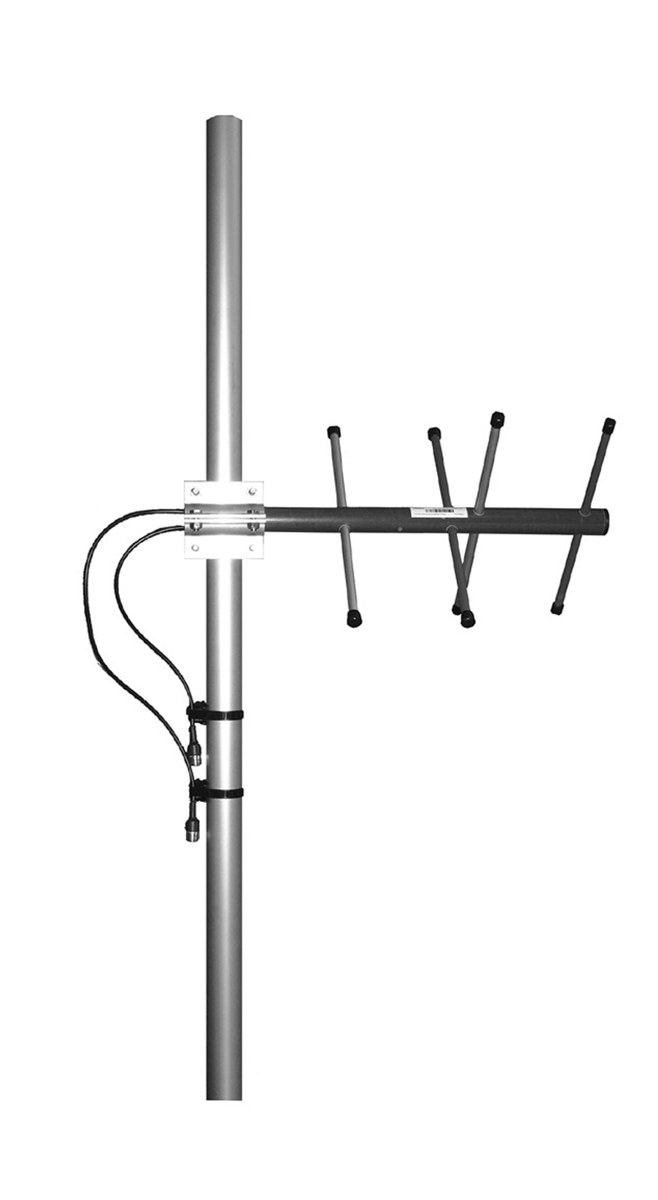

CA400XCross-polarized yagi- Frequency
- 380-410 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 560 mm
- Weight
- 980 g
- Wind load
- 63 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA400X+Cross-polarized yagi- Frequency
- 380-410 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 870 mm
- Weight
- 1185 g
- Wind load
- 97 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-

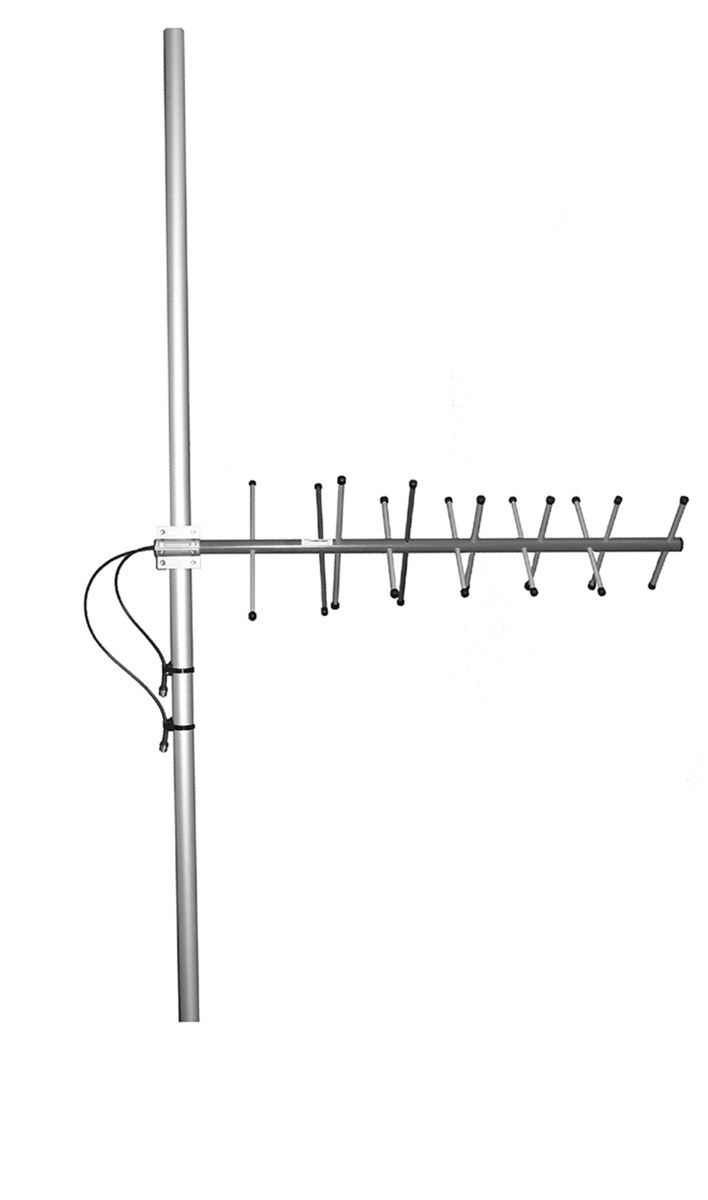

CA400X++Cross-polarized yagi- Frequency
- 380-410 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1150 mm
- Weight
- 1440 g
- Wind load
- 129 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
405–440 MHz 3
-
CA420XCross-polarized yagi- Frequency
- 405-440 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 540 mm
- Weight
- 955 g
- Wind load
- 60 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA420X+Cross-polarized yagi- Frequency
- 405-440 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 830 mm
- Weight
- 1080 g
- Wind load
- 91 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-
CA420X++Cross-polarized yagi- Frequency
- 405-440 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1120 mm
- Weight
- 1400 g
- Wind load
- 120 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
440–475 MHz 3
-
CA450XCross-polarized yagi- Frequency
- 440-475 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 520 mm
- Weight
- 935 g
- Wind load
- 57 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA450X+Cross-polarized yagi- Frequency
- 440-475 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 780 mm
- Weight
- 1150 g
- Wind load
- 86 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-
CA450X++Cross-polarized yagi- Frequency
- 440-475 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/TNC-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 1045 mm
- Weight
- 1350 g
- Wind load
- 113 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
703–803 MHz 3
-
CA750XCross-polarized yagi- Frequency
- 703-803 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 400 mm
- Weight
- 875 g
- Wind load
- 44 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA750X+Cross-polarized yagi- Frequency
- 703-803 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 565 mm
- Weight
- 920 g
- Wind load
- 62 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-
CA750X++Cross-polarized yagi- Frequency
- 703-803 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 770 mm
- Weight
- 1040 g
- Wind load
- 79 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
791–862 MHz 3
-
CA830XCross-polarized yagi- Frequency
- 791-862 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 385 mm
- Weight
- 850 g
- Wind load
- 41 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA830X+Cross-polarized yagi- Frequency
- 791-862 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 535 mm
- Weight
- 895 g
- Wind load
- 56 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-
CA830X++Cross-polarized yagi- Frequency
- 791-862 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 730 mm
- Weight
- 1020 g
- Wind load
- 70 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
830–890 MHz 3
-
CA860XCross-polarized yagi- Frequency
- 830-890 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 380 mm
- Weight
- 845 g
- Wind load
- 40 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA860X+Cross-polarized yagi- Frequency
- 830-890 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 525 mm
- Weight
- 890 g
- Wind load
- 55 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-
CA860X++Cross-polarized yagi- Frequency
- 830-890 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 700 mm
- Weight
- 1015 g
- Wind load
- 68 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
880–960 MHz 3
-
CA930XCross-polarized yagi- Frequency
- 880-960 MHz
- Gain
- 6 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 370 mm
- Weight
- 830 g
- Wind load
- 39 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 140/103º*
- Vertical beamwidth (−3 dB)
- 89/97º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX family, ComAnt catalog (March 2026), page 55.
-
CA930X+Cross-polarized yagi- Frequency
- 880-960 MHz
- Gain
- 8 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 500 mm
- Weight
- 860 g
- Wind load
- 52 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 69/68º*
- Vertical beamwidth (−3 dB)
- 68/65º*
- Front-to-back
- 12/12 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX+ family, ComAnt catalog (March 2026), page 56.
-
CA930X++Cross-polarized yagi- Frequency
- 880-960 MHz
- Gain
- 10 dBi
- Polarization
- dual/circular
- Connector
- N-/7/16-female
- VSWR
- <1.5
More specifications
- Radome
- ABS/FG, PU foam
- Radiator
- copper
- Mounting
- Ø 35-60
- Length
- 650 mm
- Weight
- 930 g
- Wind load
- 64 N @ 150 km/h
- Horizontal beamwidth (−3 dB)
- 55/54º*
- Vertical beamwidth (−3 dB)
- 54/52º*
- Front-to-back
- 12/11 dB*
- Isolation
- 30 dB*
- Temperature
- -40ºC - +80ºC*
- IP rating
- 67*
* From CompleTech's datasheet for the CAX++ family, ComAnt catalog (March 2026), page 57.
Need it built, not just bought?
Our UL 508A panel shop in Brookfield, Wisconsin builds radio and telemetry enclosures: the radio, the lightning protection and the cabling, wired and tested. Build to print or PLC and control panels.
